Corner Weight System Bluetooth SkyRC

Inclui:
Balança de calibração de carro medidor de peso de eixos Bluetooth SKY RC

Características:

Carros RC saem de pista, tombam, rodam com pneus excêntricos de vez em quando. Estes são os resultados típicos de CG (centro de gravidade) incorreto devido às quatro rodas não balanceadas/equilibradas. A distribuição desigual do peso das rodas fará com que o carro balance mais  numa direção, do que em outras. Nestas circunstâncias, o carro ficará instável, difícil de controlar!

O SkyRC SCWS2000 Corner Weight System aprimorado pode ajudar os pilotos de RC a medir e visualizar facilmente a distribuição de peso de canto do carro de RC através da app. Com a precisão de 1g, os pilotos de RC podem ajustar com precisão o peso do carro em cada curva, para o melhor equilíbrio de forma a ajudar a vencer a corrida.

Informação adicional da marca:

In order to optimally coordinate a car that can be driven in a balanced way in all situations, a computer-controlled weighing system is essential. SKYRC’s Bluetooth Corner Weight System can help achieve just that.

The system measures the weight on each individual axis on the model. Thus, it pretty much reflects the existing weight distribution of the racing car on each wheel and makes it possible to optimize and adapt it with small changes. This gives you a decisive advantage the next time You hit the road.

Because a well-balanced chassis can be moved more easily and quickly than a chassis with a different weight on all four axes. Like this the car will behave very differently when cornering to the left than when cornering to the right. And driving stability will otherwise suffer significantly, especially on fast routes, and driving errors will increase.

Features:

• Designed for difter and touring cars
• Real-time display of all data via Bluetooth on the smartphone
• Measure the corner weight of your car as well as the front and rear distribution
• Make almost pinpoint adjustments for a perfect balance (in 0.1g or 0.01oz steps)
• Maximum weight per scale: 2000g (8000g in total)
• Selectable units: gram and ounce
• Powered by four button cell batteries (CR2450)

Neccessary App:

• RC-Gears  – iOS 9.0 / Android 8.0
  Available languages: English, German, Japanese, Chinese

Technical Specifications:

Gram Accuracy In Measuring To RC Hobbyists’ Satisfaction

RC cars run off the track, tip over, run with tires wore eccentric from time to time. These are the typical results of incorrect CG(Center of Gravity) due to the unbalanced four wheels. Uneven wheel weight distribution will cause the car to sway more in one direction than others. In this circumstance, the car will run unstable, difficult to control!

The enhanced SkyRC SCWS2000 can help RC drivers easily measure and view the RC car’s corner weight distribution through the App. With the accuracy of 1g, RC drivers can precisely adjust their car’s weight at each corner to the best balance to win the race.

Accuracy meets craftsmanship

Even the slightest difference in weight has a significant difference for RC hobbyists when it comes to the race’s performance and the car’s condition!

High-quality aluminum with good toughness is selected as the sensor rebound material. Through the rigid and harsh manufacturing process, we created a high-precision I-shaped sensor.

To improve the overall accuracy, the measurement algorithm is enhanced from the predecessor: the precision can be obtained in the shortest time. The default unit is Gram, and switching to Ounce is also available!

When inaccuracy is found, the customized in-app program can get the calibration done quickly by tapping the screen three times.

*Users need to get the 2000g standard weight prepared for calibration

Ble 5.0: Faster Connectivity And Higher Performance

This conner weighting system is empowered by the latest Bluetooth 5.0 chip, which results in faster and more stable connection. When connected with the phone, the last century segment LED as the predecessor is enhanced the intuitive display in full screen!

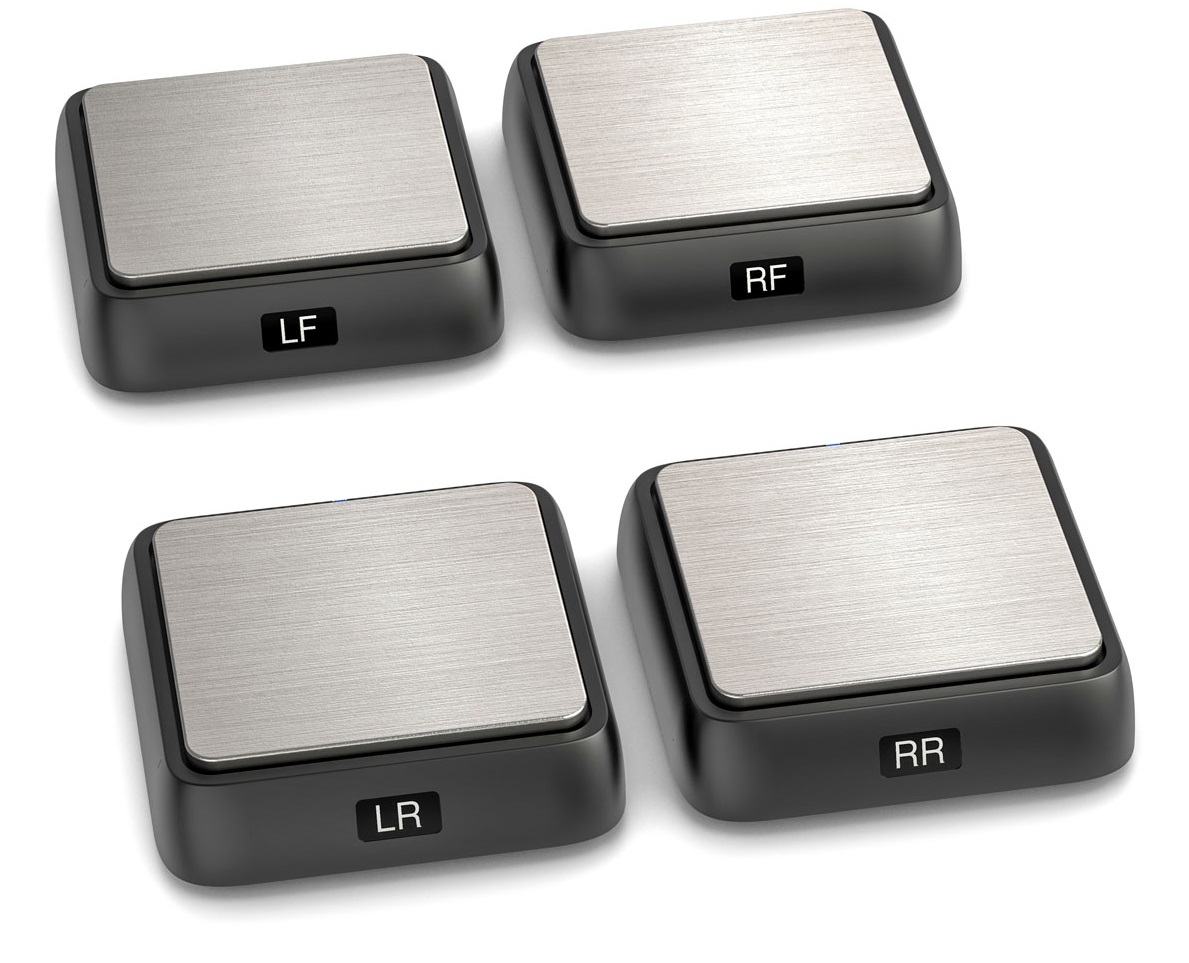

Small In Size, Big In Performance

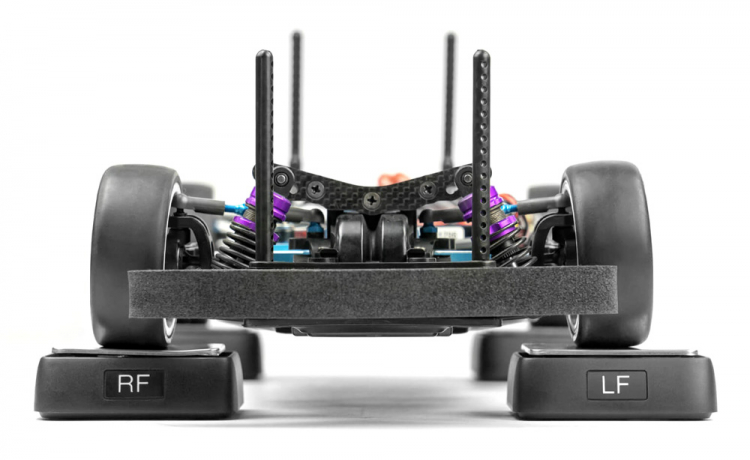

SkyRC smart weighing system is small and portable in size. It can accurately measure the weight distribution at the racing car’s four corners. So RC racer can quickly adjust the weight at each corner to the best balance effect and win the race.

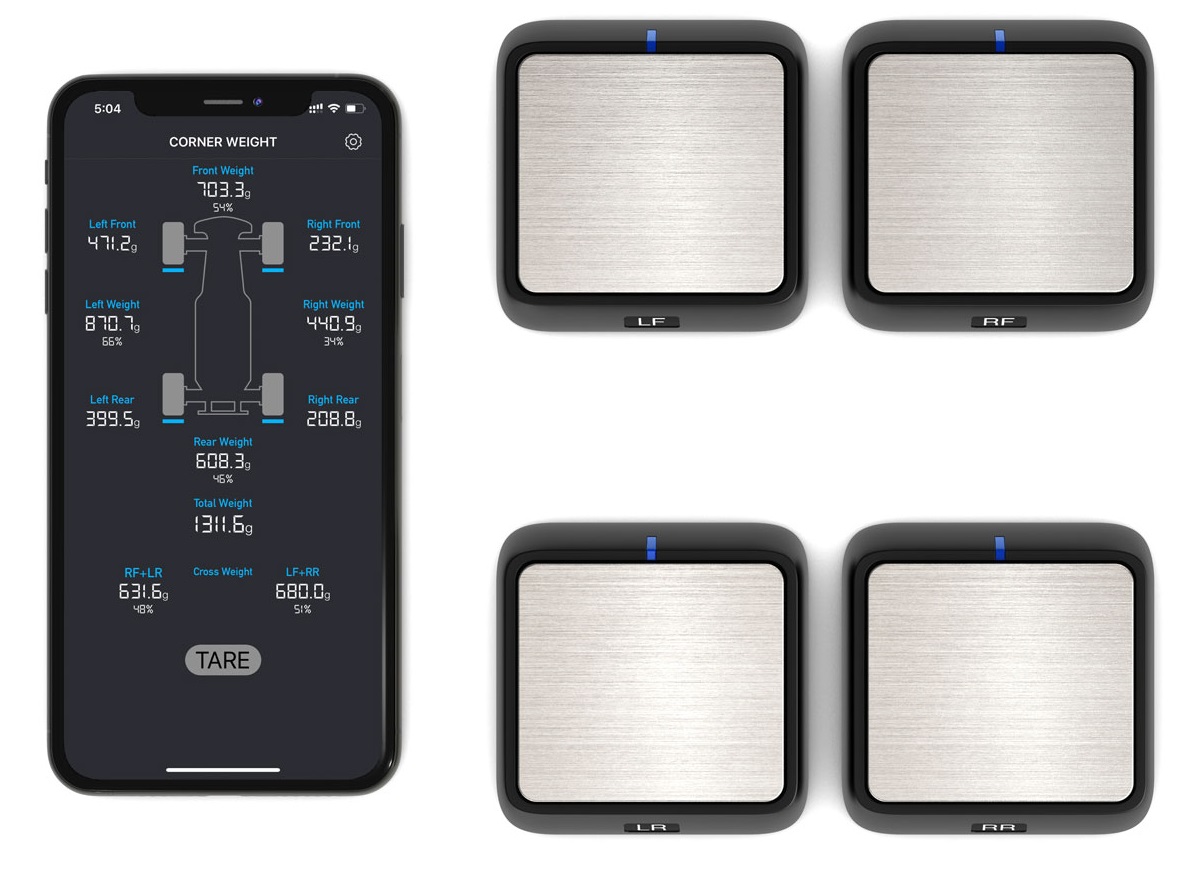

The Intuitive App

The App simulates practical scenarios to b intuitive and straightforward. The diagonal wheels are highlighted contrastingly in orange to indicate the selection. This is exactly the RC hobbyists’ paint point when balancing and distributing the weight!

Everything Is Connected: Finally, The Corner Weighting System Gets The App!

The weight and protocol data are transmitted to the mobile App in real-time via Bluetooth.

The APP can set each scale by coordinate and save the real-time weight at the respective corner. The total diagonal weight is automatically calculated on the go!

Long-lasting Power On Coin Battery

The native emphasis on the ultra-low power consumption of Bluetooth 5.0 and our proprietary protocol get a CR2450 lithium coin battery to deliver the long-lasting, dependable performance of continuous 30 hours.

* We conduct tests on Nanfu CR2450 lithium coin battery. There may be variation in actual circumstances due to the changes in the environment. The data is for reference only!

Connectivity & Security

In the circumstance of the racing field, RC hobbyists use the scales together with the possibility of mixing and getting messed up. Protection with a password will bring peace of mind!

Support For 4 Languages

Supported languages will continue to be updated, and the new experience will be delivered to more RC hobbyists globally!

The Intuitive App
The App simulates practical scenarios to b intuitive and straightforward. The diagonal wheels are highlighted contrastingly in orange to indicate the selection. This is exactly the RC hobbyists’ paint point when balancing and distributing the weight!



Click or Scan to download App
* Requires iOS 9.0 or above.
* Requires Android 8.0 or above.


Specifications:

Dimension: 68x68x22.5mm

Net weight of each scale: 70g

Rated Voltage: 2.6V-3.6V

Rated Current: <10mA@DC3V

Battery: CR2450 3V Lithium Coin Battery

Maximum weight of each scale: 2000g

Tolerance: ±0.1g

Resolution: ±0.1g

Nota: Este artigo é contra-indicado para crianças com menos de 3 anos.
