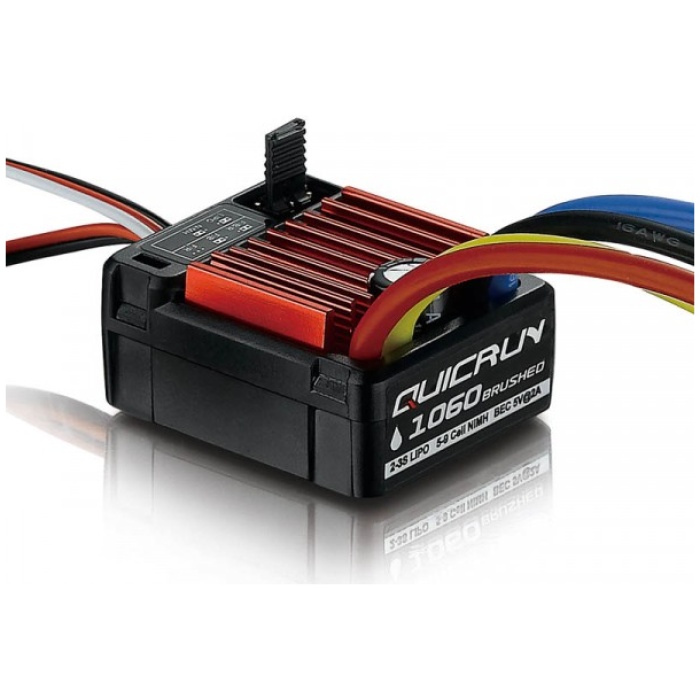

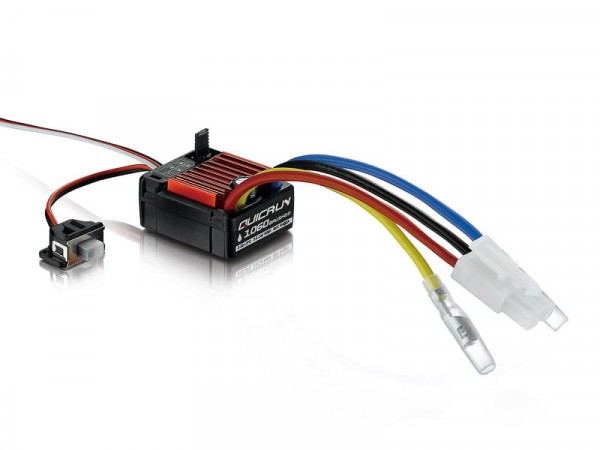

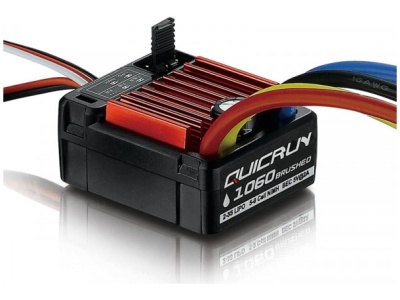

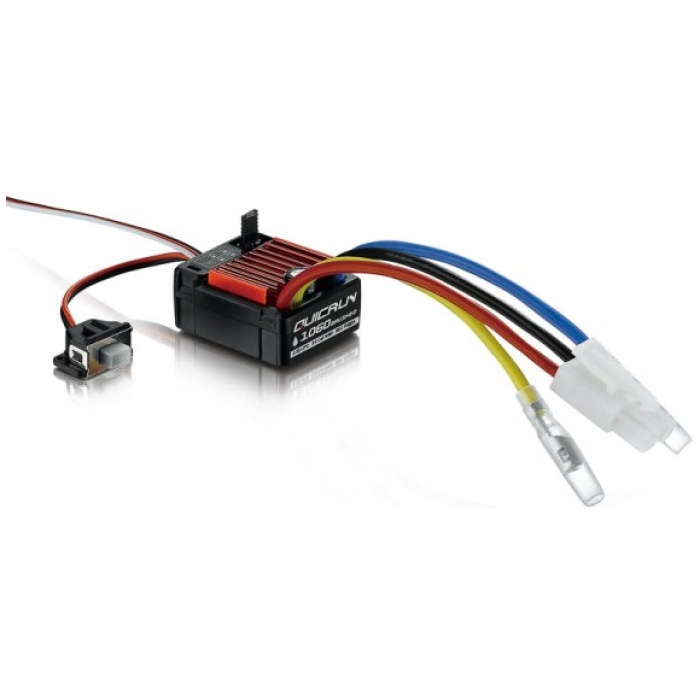

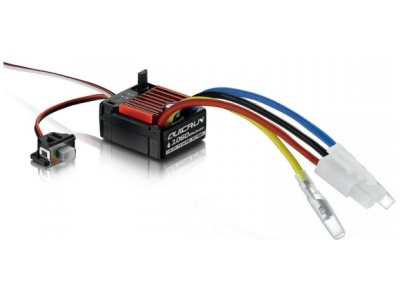

QuicRun 1060 Brushed ESC 60A 1/10 Hobbywing

Inclui:
QuicRun 1060 Brushed ESC 60A 1/10 Hobbywing

Informação adicional da marca:

The QuicRun series of products include brushed power systems, sensored brushless power systems and sensorless brushless power systems. They are very cost-effective, and specially for beginners and intermediate-level drivers. This series not only continue the outstanding quality of HOBBYWING products, but also simplify the operation. Users can directly use them without any complicated adjustments.

Features

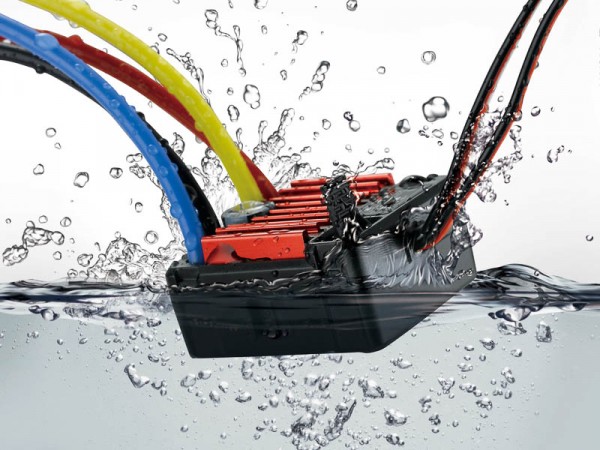

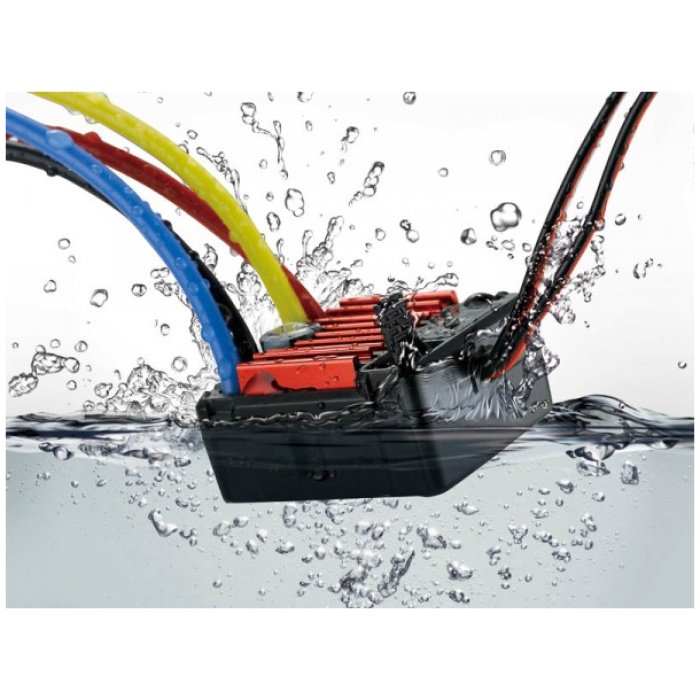

1. Water-proof and dust-proof, suitable for all-weather condition races.
2. Small size with built-in capacitor module.
3. Four running modes to fit various vehicles
   • Fwd/Br/Rev
   • Fwd/Br
   • Fwd/Rev (also called “Crawler Mode”)
   • (Note: Fwd =Forward, Br=Brake, Rev=Reverse)
4. Great current endurance capability.
5. Switch mode built-in BEC has powerful output.
6. Automatic throttle range calibration, easy to use.
7. Easy to set the ESC parameters with jumpers.
8. Multiple protections: Low voltage cut-off protection for battery / Thermal (Over-heat) protection / Throttle signal loss protection.

Specifications

• Fwd. Cont. / Peak Current: 60A /360A
• Rev. Cont. / Peak Current: 30A /180A
• Voltage Range: 2-3S Lipo or 5-9 NiMH
• Cars: 1/10
• Applicable:
  • Touring Car
  • Buggy
  • Short Course Truck
  • Monster
  • Truggy
  • Rock Crawler
  • Tank
• Motor Limit:
  • 2S Lipo or 6 cells NiMH: 540, 550 Size Motor: >=12T or RPM<30000 @7.2V
  • 3S Lipo or 9 cells  NiMH: 540, 550 Size Motor: >=18T or RPM<20000 @7.2V
• BEC Output: 3A/6V
• Dimension / Weight: 36.5*32*18 / 39g

 The ESC can be programmed by jumpers.

• Running Mode:
  •         Fwd/Br/Rev
  •         Fwd/Br
  •         Fwd/Rev (Crawler)
• Battery Type: Lipo / NiMH
