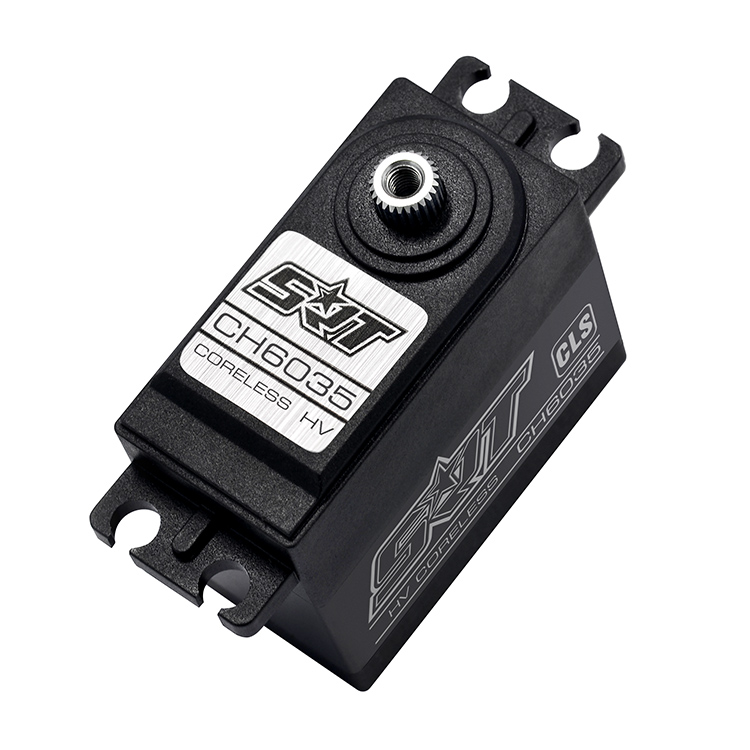

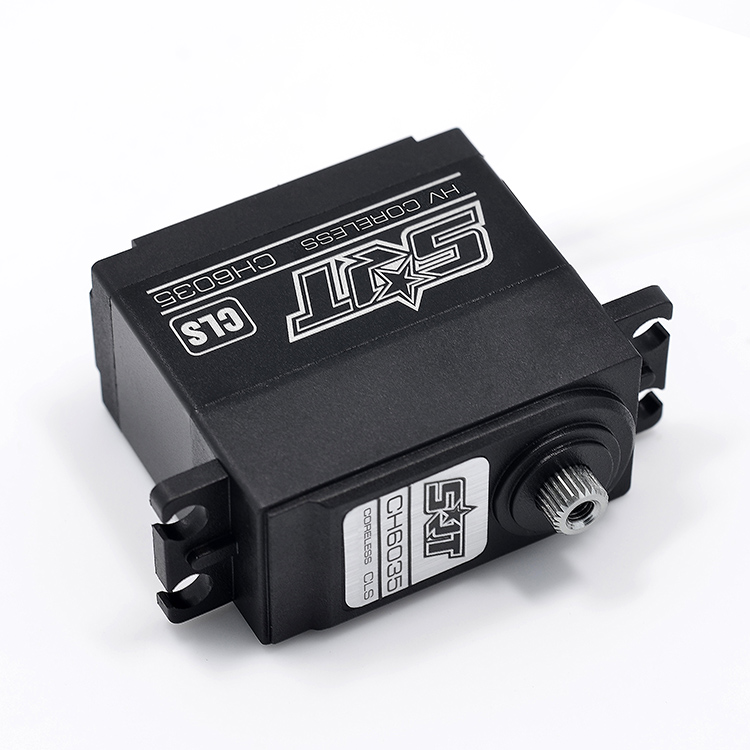

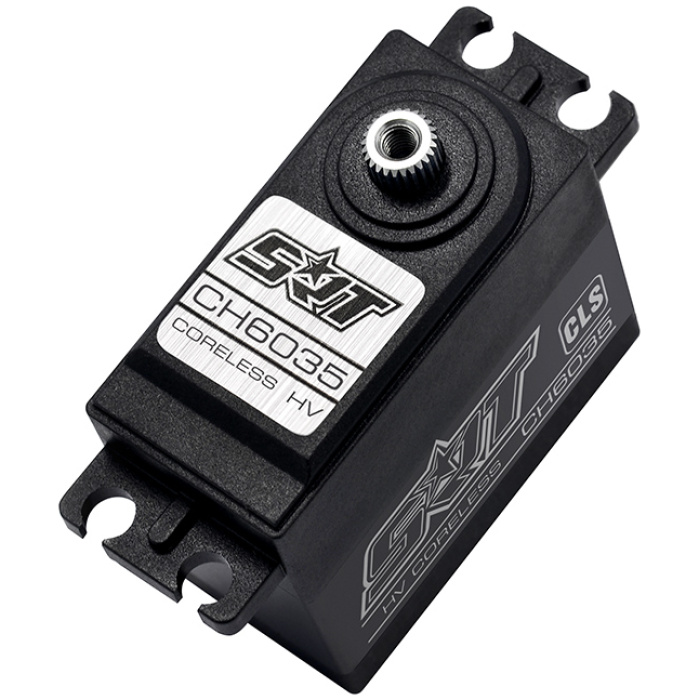

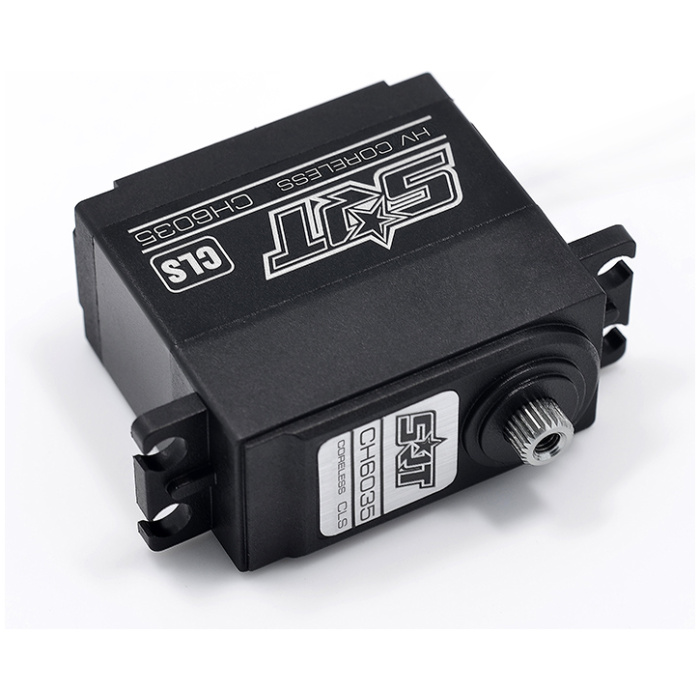

Servo CH6035 HV Coreless 8.4V Titanium Gear 1/5 (35.0kg/0.14sec) SRT
62,95 €
3 em stock
Inclui:
Servo CH6035 HV Coreless 8.4V Titanium Gear 1/5 (35.0kg/0.14sec) SRT
Indicado para:
1/5 e 1/8 on-road;
1/5 e 1/8 off-road;
Aviões
Características:
Ultima geração de Servos da SRT;

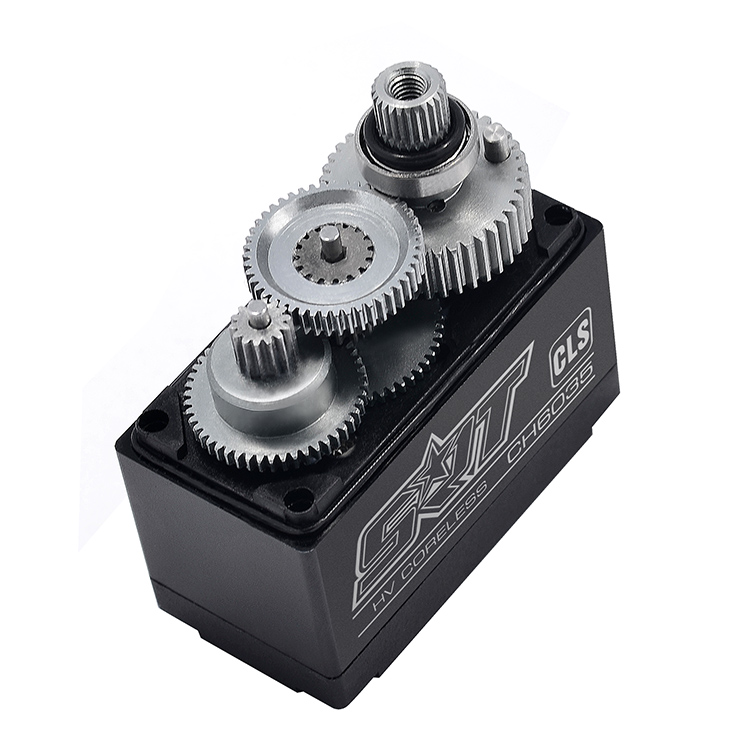

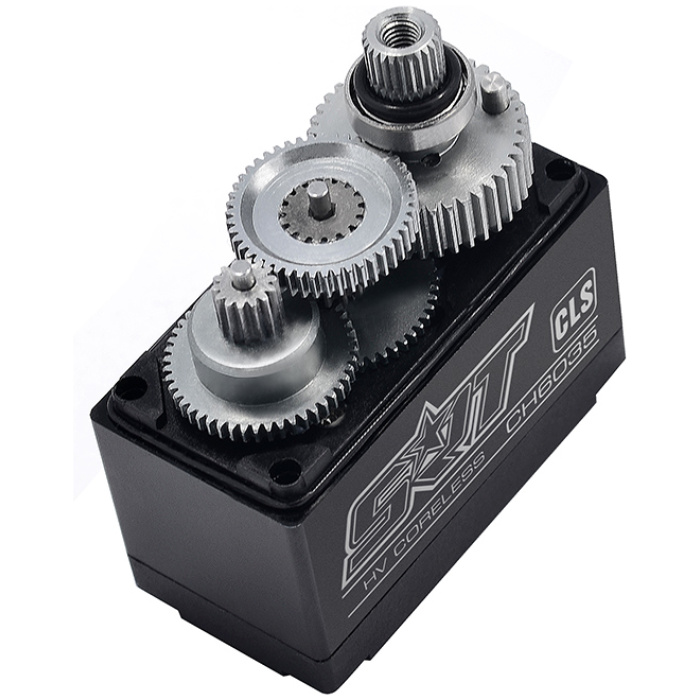

Servo de alta performace com carretos em metal e titânio;
Tamanho standard para a maior parte das aplicações;
Caixa em alumínio CNC para melhor performance;
Duplo rolamentos NMB
Veio de bandeira com 25T
Dimensões: 40.7×20.5×38.5mm
Informação adicional da marca:
KEY FEATURES
& Ideal for 1/10 on road and 1/8 off road scale applications, as well as large scale airplanes and jets
& incredible efficiency and low power consumption
& 2 μsec Dead Band
& 1-Year Limited Warranty
| Item no | 6.0V | 7.4V | 8.4V | Gear | Motor | Case | Dimension (mm) |
Weight (g) |
|||
| Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
||||||
| CH6035 | 0.16 | 30.0/416.6 | 0.15 | 32.0/444.4 | 0.14 | 35.0/486.1 | Titanium & Steel | Coreless | Semi-metal | 40.7*20.5*38.5 | 75.0 |
Application :
1/5 Electric/ Car
1/5 Nitro/ Car
1/5 Off-road
1/5 On-road
Air plane
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.16 sec/60 degrees at no load
operating speed (7.4v): 0.15 sec/60 degrees at no load
operating speed (8.4v): 0.14 sec/60 degrees at no load
stall torque (6.0v): 30.0kg.cm (416.6 oz/in)
stall torque (7.4v): 32.0kg.cm (444.4 oz/in)
stall torque (8.4v): 35.0kg.cm (486.1 oz/in)
potentiometer drive: direct drive
dimensions: 40.7×20.5×38.5 mm /1.6×0.8×1.51 in
weight: 75.0g (2.65 oz)
connector wire length: jr 250 mm
SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle Air PlaneBoatRobot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos are available to be customized for easy installation by OEM order.
Nota: Este artigo é contra-indicado para crianças com menos de 3 anos.
| Peso | 0,19 kg |
|---|---|
| Marca |
SRT |
