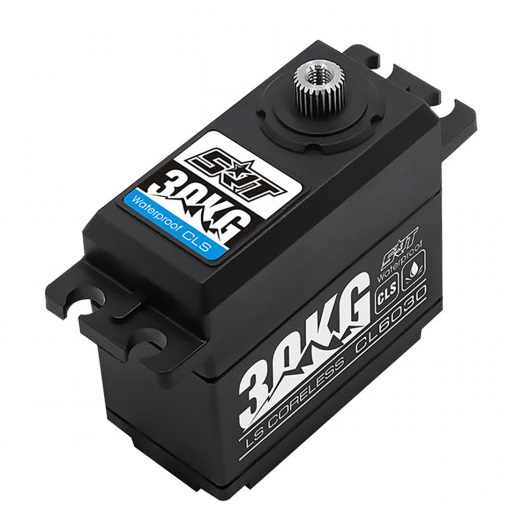

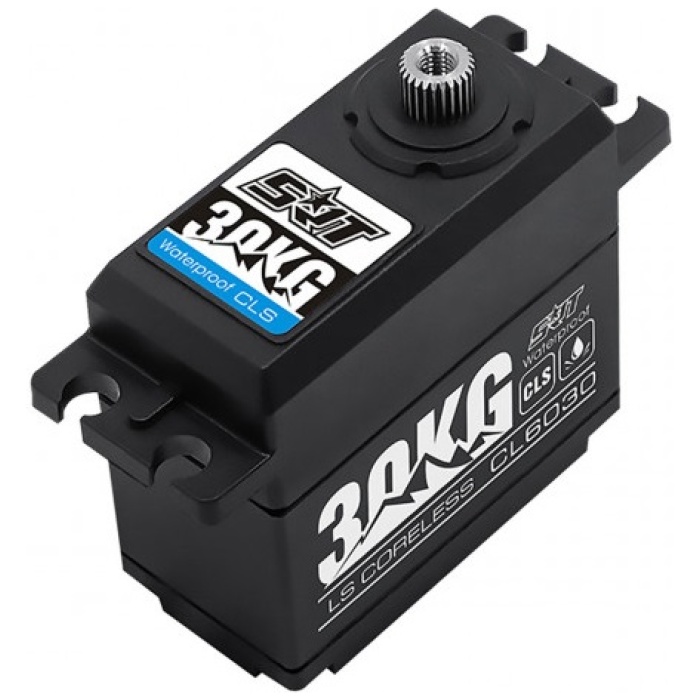

Servo CL6030 HV Coreless 7.4V Titanium Steel Gear (30.0kg/0.11sec) Waterproof SRT

Inclui:
Servo CL6030 HV Coreless 7.4V Titanium Steel Gear (30.0kg/0.11sec) à Prova de Àgua SRT

Informação adicional da marca:

6969006030609 CL6030 SRT Coreless HV High torque Waterproof 30.0kg/0.11sec @7.4V

KEY FEATURES

& Titanium & Steel gears for precision and durability
& Intermediate aluminum case
& NMB dual main bearings
& Superior waterproof
& 25T output shaft
& 1-Year Limited Warranty

Application :
 1/10 Crawler

PRODUCT SPECIFICATIONS

Type: Digital

Bearing: Dual

Motor Type: Coreless

Gear Type: Metal

Gear Material: Titanium & Steel

control system: pulse width control

working frequence: 1520μs / 330hz

operating voltage: dc4.8-7.4v

operating temperature range: -10 to + 60 degree

operating speed (4.8v): 0.13 sec/60 degrees at no load

operating speed (6.0v): 0.12 sec/60 degrees at no load

operating speed (7.4v): 0.11 sec/60 degrees at no load

stall torque (4.8v): 19.0kg.cm (263.9 oz/in)

stall torque (6.0v): 25.0kg.cm (347.2 oz/in)

stall torque (7.4v): 30.0kg.cm (416.6 oz/in)

potentiometer drive: direct drive

dimensions: 41.3×20.5×38.3 mm /1.63×0.8×1.51 in

weight: 69.0g (2.43 oz)

connector wire length: jr 300 mm

SRT SERVO OVERVIEW
The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos  are available to be customized for easy installation by OEM order.
