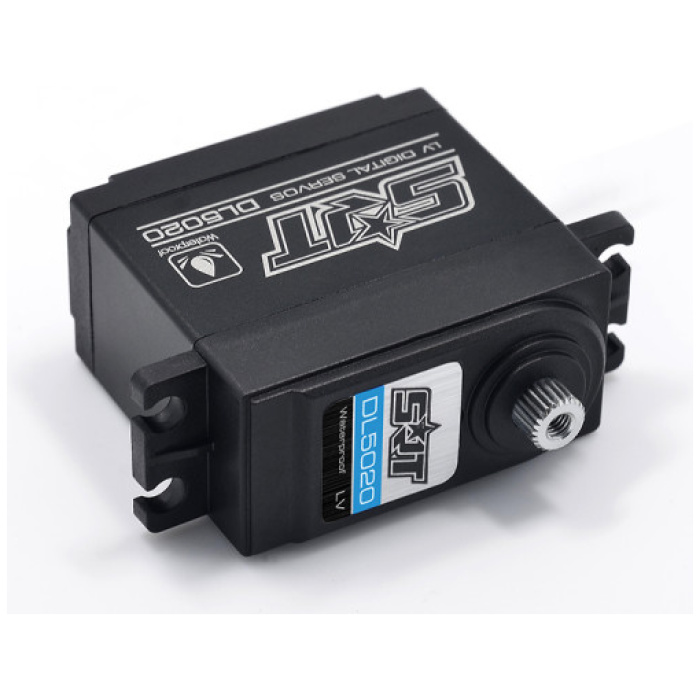

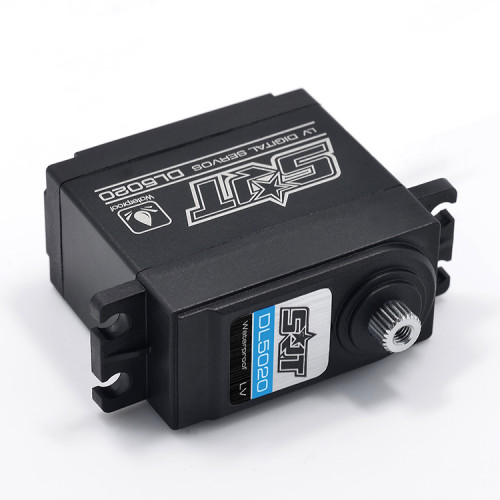

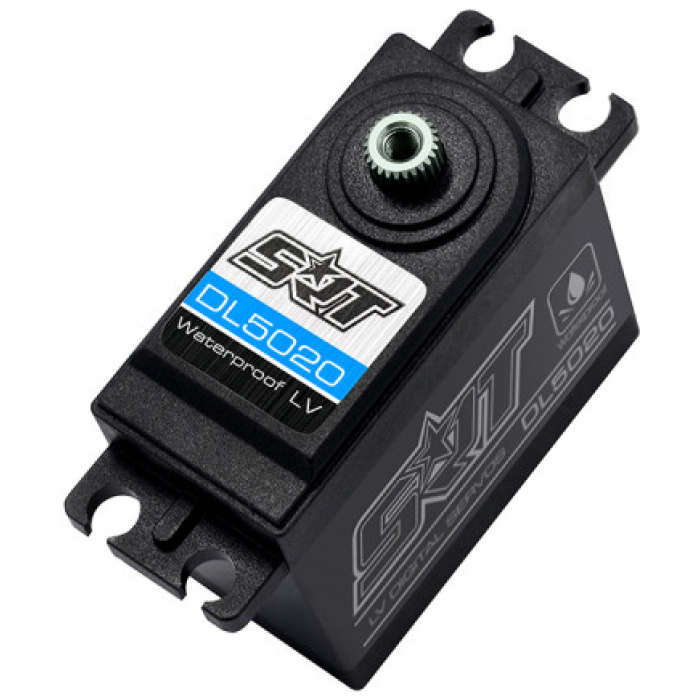

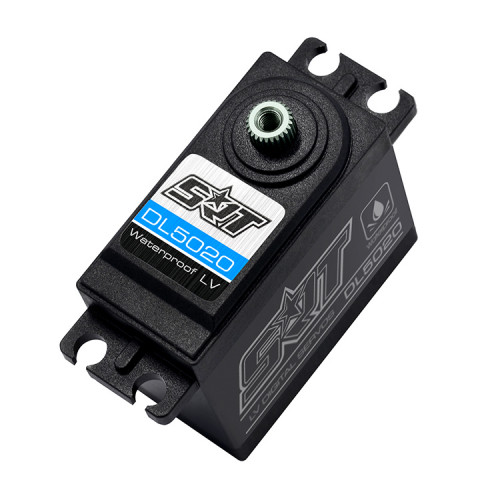

Servo Digital DL5020 1/8 1/10 Crawler LV 6.0V Titanium Gear (20.0kg/0.16sec) Waterproof SRT

Inclui:
Servo Digital DL5020 1/8 1/10 Crawler LV 6.0V Titanium Gear (20.0kg/0.16sec) Waterproof SRT

Indicado para:
1/10 on-road;
1/10 off-road;
1/8 on-road;
1/8 off-road;
Aviões de larga escala e jactos
Barco eléctrico

Características:
Ultima geração de Servos da SRT;
Servo de alta performace;
Tamanho standard para aplicações 6.0V;

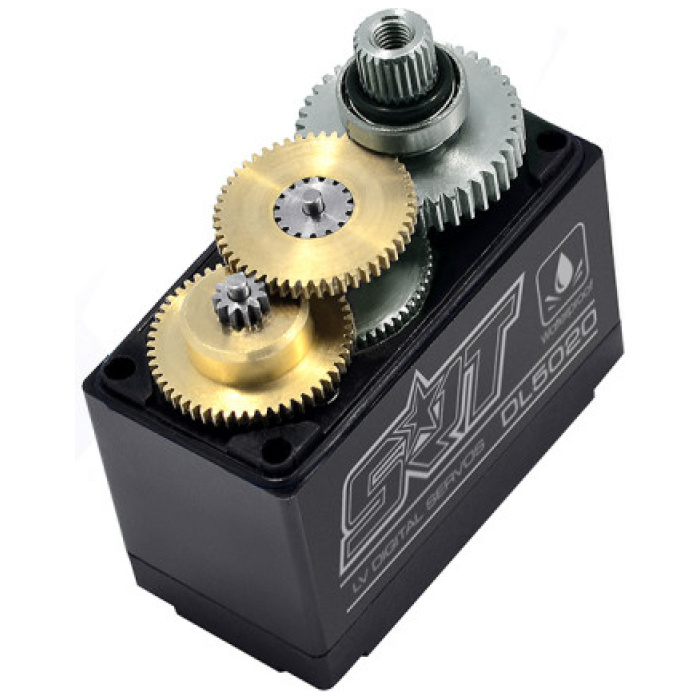

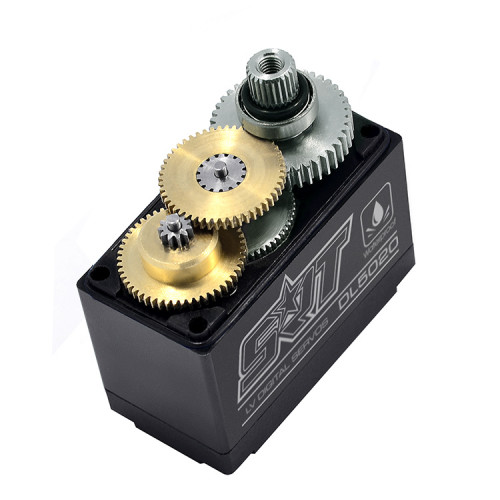

Caixa em metal para melhor performance;
Duplo rolamentos NMB
À prova de água
Veio de bandeira com 25T
Dimensões: 40.7×20.5×39.5mm

Especificações:
Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequency: 1520μs / 330hz
operating voltage: dc4.8-6.0v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.18 sec/60 degrees at no load
operating speed (6.0v): 0.16 sec/60 degrees at no load
stall torque (4.8v): 16.5kg.cm (229.1 oz/in)
stall torque (6.0v): 20.0kg.cm (277.7 oz/in)
potentiometer drive: direct drive
dimensions: 40.7×20.5×39.5 mm /1.6×0.8×1.55 in
weight: 65.0g (2.29 oz)
connector wire length: jr 250 mm

Informação adicional da marca:

KEY FEATURES

& Ideal for 1/10 on road and 1/8 off road scale applications
& Intermediate aluminum case
& NMB dual main bearings
& Superior waterproof
& 25T output shaft
& 1-Year Limited Warranty

Application :
1/10 Electric/ Car         1/10 Nitro/ Car               1/8 / Off-road
 1/10/8  / Off-road       1/10/8  Off-road            1/10/8 / Off-road
 Electric/ BOAT

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc4.8-6.0v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.18 sec/60 degrees at no load
operating speed (6.0v): 0.16 sec/60 degrees at no load
stall torque (4.8v): 16.5kg.cm (229.1 oz/in)
stall torque (6.0v): 20.0kg.cm (277.7 oz/in)
potentiometer drive: direct drive
dimensions: 40.7×20.5×39.5 mm /1.6×0.8×1.55 in
weight: 65.0g (2.29 oz)
connector wire length: jr 250 mm

SRT SERVO OVERVIEW
The latest generation of SRT  servos provides you with the performance you need for any scale vehicle Air PlaneBoatRobot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos  are available to be customized for easy installation by OEM order.

Nota: Este artigo é contra-indicado para crianças com menos de 3 anos.
