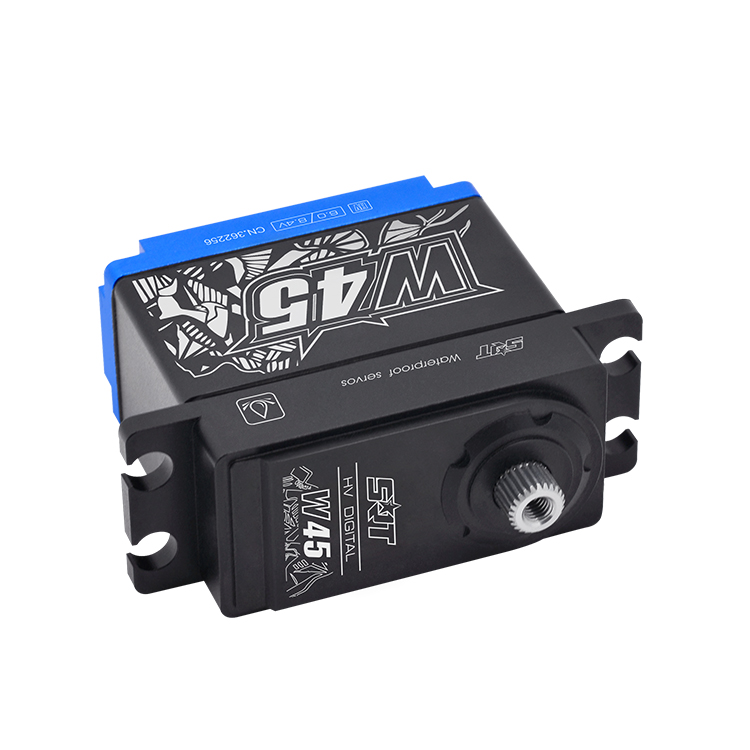

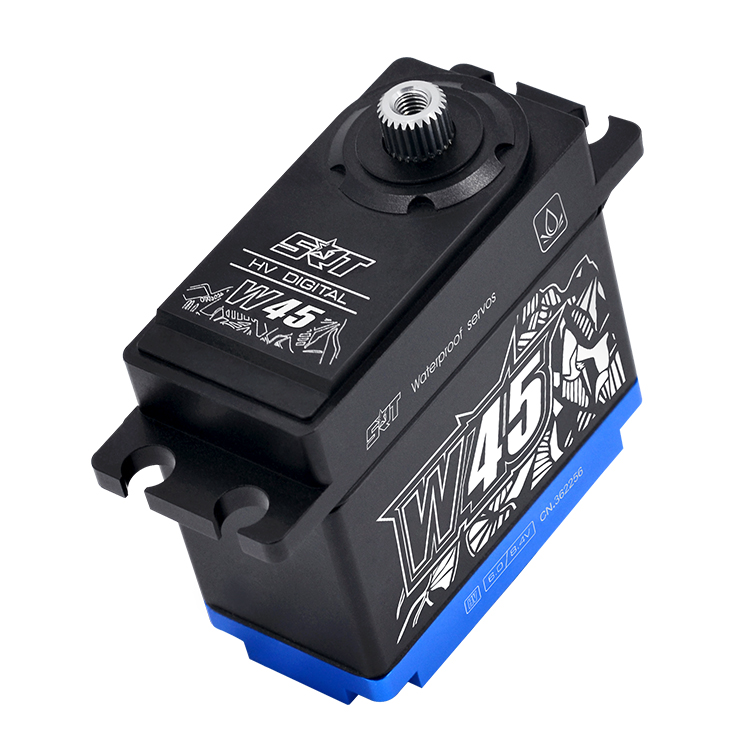

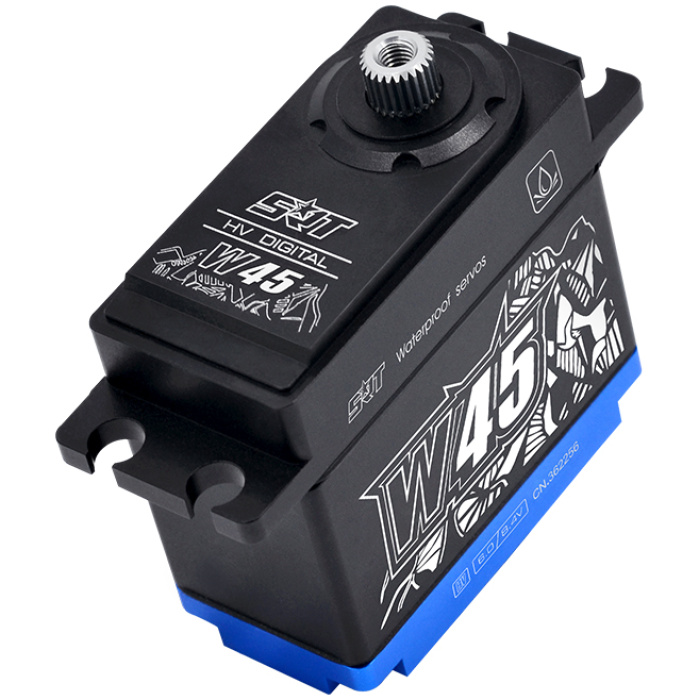

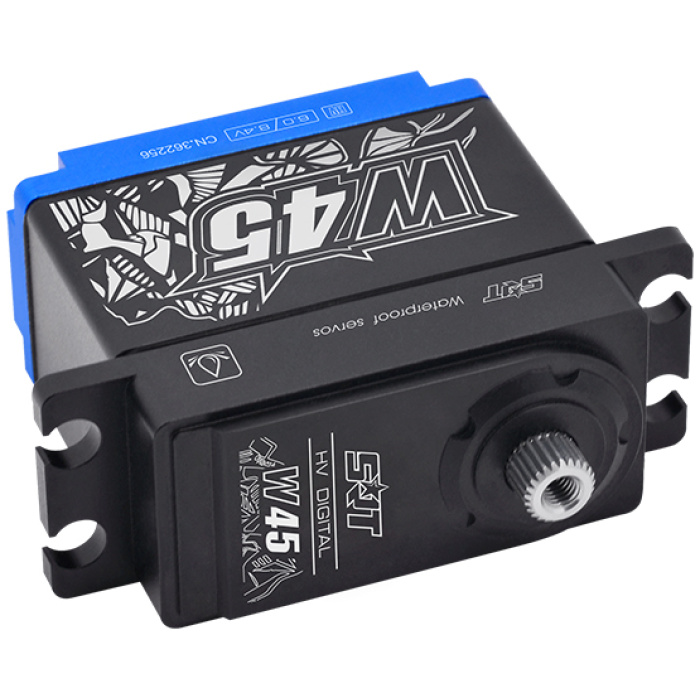

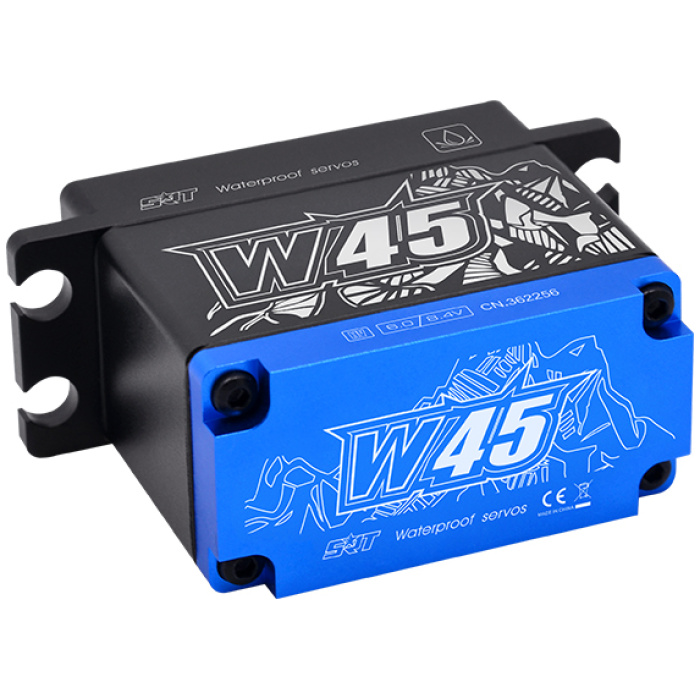

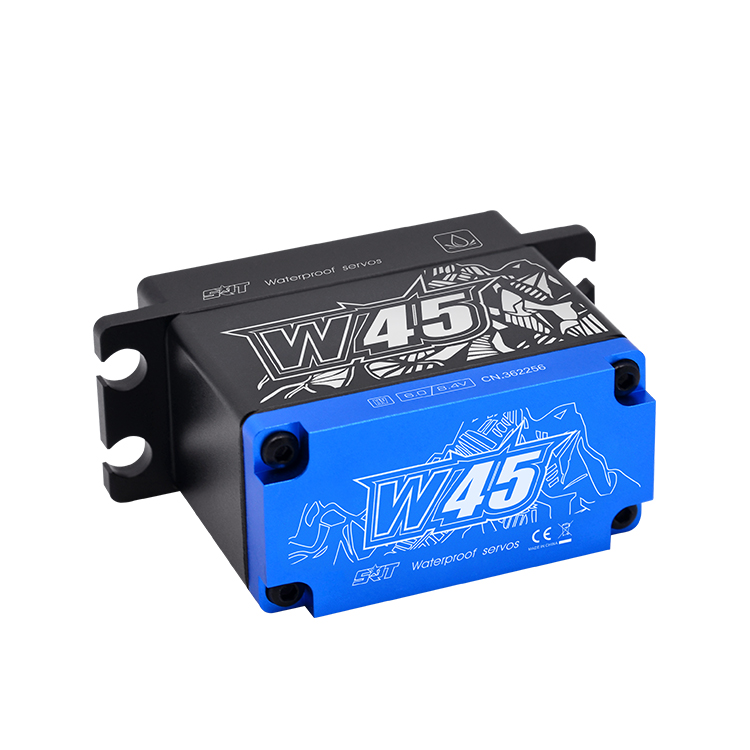

Servo W45 HV 8.4V Coreless Titanium Gear (45.0kg/0.18sec) Crawler Waterproof SRT
75,95 €
2 em stock
Inclui:
Servo W45 HV 8.4V Coreless Titanium Gear (45.0kg/0.18sec) Crawler Waterproof SRT
Indicado para:
1/10 e 1/8 on-road;
1/10 e 1/8 off-road;
Crawlers
Barcos
Características:
Ultima geração de Servos da SRT;
Servo de alta performance;
Tamanho standard para aplicações HV até 8.7V;
Caixa em metal para melhor performance;
Duplo rolamentos NMB
À prova de água
Veio de bandeira com 25T
Dimensões: 40.7×20.5×38.6mm
Informação adicional da marca:
KEY FEATURES
& Ideal for 1/10 on road and 1/8 off road scale applications
& Intermediate aluminum case
& NMB dual main bearings
& Superior waterproof
& 25T output shaft
& 1-Year Limited Warranty
| Item no | 6.0V | 7.4V | 8.4V | Gear | Motor | Case | Dimension (mm) |
Weight (g) |
|||
| Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
||||||
| W45 | 0.20 | 34.0/472.2 | 0.19 | 40.0/555.5 | 0.18 | 45.0/624.9 | Titanium & Steel | Coreless | CNC | 40.7*20.5*38.6 | 82.5 |
Application :
1/10 Electric/ Car
1/10 Nitro/ Car
1/8 / Off-road
1/10/8 / Off-road
1/10/8 Off-road
1/10/8 / Off-road
Electric/ BOAT
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.20 sec/60 degrees at no load
operating speed (7.4v): 0.19 sec/60 degrees at no load
operating speed (8.4v): 0.18 sec/60 degrees at no load
stall torque (6.0v): 34.0kg.cm (472.2 oz/in)
stall torque (7.4v): 40.0kg.cm (555.5 oz/in)
stall torque (8.4v): 45.0kg.cm (624.9 oz/in)
potentiometer drive: direct drive
dimensions: 40.7×20.5×38.6 mm /1.60×0.81×1.52 in
weight: 82.5g (2.91 oz)
connector wire length: jr 360 mm
SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle Air PlaneBoatRobot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos are available to be customized for easy installation by OEM order.
Nota: Este artigo é contra-indicado para crianças com menos de 3 anos.
| Peso | 0,19 kg |
|---|---|
| Marca |
SRT |
