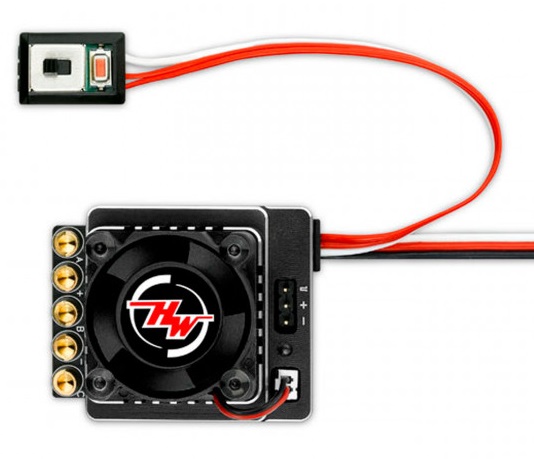

Xerun XR10 Justock G3 Brushless ESC 60A 2S-3 LiPo BEC 3A Hobbywing
69,95 €
Esgotado
Inclui:
Xerun XR10 Justock G3 Brushless ESC 60A 2S-3 LiPo BEC 3A Hobbywing
Características:
ESC: 30112003 XERUN XR10 JUSTOCK G3
Applications: 1/10, 1/12 On-Road and Off-Road Competition and Training (e.g. Touringcar, Buggy)
- Built-in polarity protection
One danger that all electrical systems face is a reversed polarity from the power source. This can be caused by a short circuit, or usually, incidentally reversing the terminals. The XR10 Justock is integrated using MOSFET. If the battery terminals are connected in reverse, the MOSFET will be reverse-biased and will not allow current to flow through the system. - Built-in capacitor module
The built-in capacitor module eliminates the need for external capacitors and unwanted space. - RPM speed limit function
The ESC is able to support up to 6 different speed (RPM) selections to meet the needs and demands of various competitions in the world. It can be programmed by using the latest OTA Bluetooth module or the traditional 3in1 program box. - Zero timing competition design
The internal timing of the ESC is fixed at 0 degrees and cannot be adjusted. It is specifically built for zero-timing races around the world. - Built-in BEC supporting high-voltage steering gear
The ESC has a built-in BEC which can support a maximum output current of up to 8A and the output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market. - Single programming and RESET design button
The ESC is designed with a single built-in SET button. Calibrating or doing a factory-reset can be achieved by using this SET button. Simple and easy to use. - Support bi-directional motor movement
The ESC supports both CCW (counterclockwise) and CW (clockwise) motor rotational directions for different usage on the market. - Protection functions
The various protection functions have greatly improved the reliability and durability of the ESC. (Reverse polarity, Battery low voltage, ESC temperature, Motor temperature, Signal lost, and Locked rotor protection) - Support ESC firmware upgrade
Hobbywing engineers are constantly innovating and pushing the limits of its products. Enjoy the latest functions by upgrading to the latest firmware. Simply connect the ESC using either the HW LINK App via the OTA Bluetooth module or the USB LINK software through the computer. -
User-friendly and convenient for set-up
The ease of having a dedicated programming port eliminates the trouble of plugging and unplugging the cable to the receiver. In addition, the interface can power additional fans to further dissipate heat. The user-friendly interface allows for easy and convenient setup by simply connecting the 3in1 LCD programming box or OTA Bluetooth module to the dedicated programming port.
| Specification | XR10 Justock G3 |
| Current | Continuous:60A, Burst: 380A |
| Input * Note #1 | 2S Lipo(Only 2S) |
| Built-in BEC | 6V/7.4V @ 4A(Switch-mode) |
| ESC programming | Independent programming port |
| Motor Supported | Sensor and sensorless brushless motor |
| Motor Limit | ≥10.5T 3650 Motor |
| Suitable Car | 1/10, 1/12 On-road and Off-road club competition and normal training |
| Cooling Fan | Powered by BEC |
| Size | 40.9(L)x33.9(W)x32.1(H) |
| Weight | 75.4g(Including the weight of wire) |
- Multi-Protection Functions, making your running safe with ESC and Motor overheat protection, low voltage cutoff, and throttle signal loss protection.
- Easily programmed using the latest OTA Bluetooth module or the traditional 3in1 program box.
- New USB LINK Software graphic interface, providing extra parameters for advanced settings. (PC only)
- ESC firmware can be updated through the USB adapter in the LCD Program Box.
A combination of the JUSTOCK 3650SD G2.1 motor and the XR10 JUSTOCK G3 ESC, this combo is perfectly matched for the ambitious stock or races. The XR10 JUSTOCK G3 ESC was specially developed for races and training drives. The brand new “RPM Limit” programming option ensures that the limit can be adjusted depending on the racing requirements – from 12.500RPM up to 25.000RPM as well as unlimited. In addition, there is the well-known fixed 0-Timing, which is often required in races. So get ready for a fair and successful race.
Thanks to new programming options compared to its predecessor, it is now also possible to determine the direction of rotation of the motor as well as to set the BEC voltage to a certain value.
Features (ESC)
- Perfect for competition thanks to RPM limits and 0 timing
- Direction of motor rotation free choosable (CW or CCW)
- Adjustable BEC voltage (6V or 7,4V)
- Robust aluminum housing for ideal heat dissipation
- Built-in capacitors as a space-saving solution compared to external capacitors
- Various protective functions against polarity reversal, overheating, Fail-safe and more
- Numerous possibilities for programming (LED / LCD programming, WiFi / OTA module, …)
- Firmware upgrades possible to always be up to date
Technical Specifications (ESC)
| Type: | Brushless, Sensored |
| Power cont./peak | 60A / 380A |
| Input Voltage: | 2S Lipo |
| BEC: | 6V / 7.4V @ 4A |
| Motor Types: | Brushless Motors (sensored and sensorless) |
| Motor Limit: | >=10.5T 3650 Motor |
| Fan: | Yes, Input via BEC |
| Programming: | SET-Button, LED Programming Box, LCD Programming Box, Wifi Module, OTA Module, separate Programming Port |
| Dimensions: | 40.9×33.9×32.1mm |
| Weight: | 75.4g |
| Application: | 1/10, 1/12 On-Road and Off-Road Competition and Training (e.g. Touringcar, Buggy) |
Nota: Este artigo é contra-indicado para crianças com menos de 3 anos.
| Peso | 0,815 kg |
|---|---|
| Marca |
Hobbywing |
