Carro XR5 Max Rolling 1/5 Chassis Pro 4WD MCD Racing
Informação adicional da marca:
 |

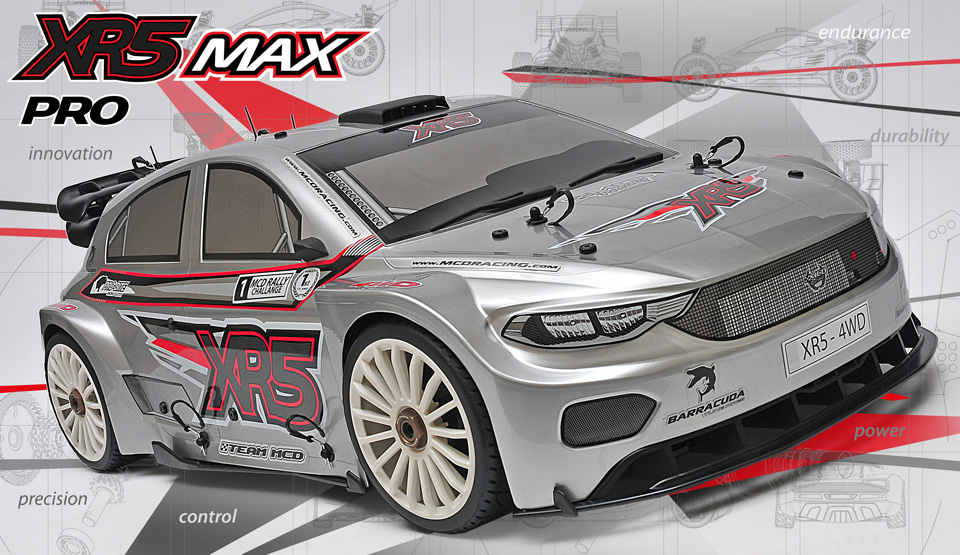

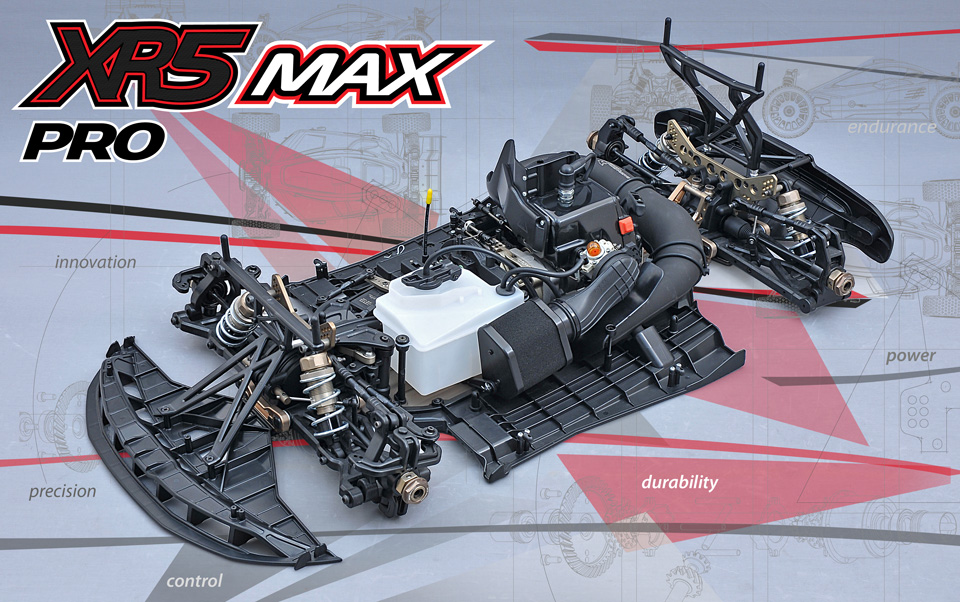

| The XR5 MAX PRO

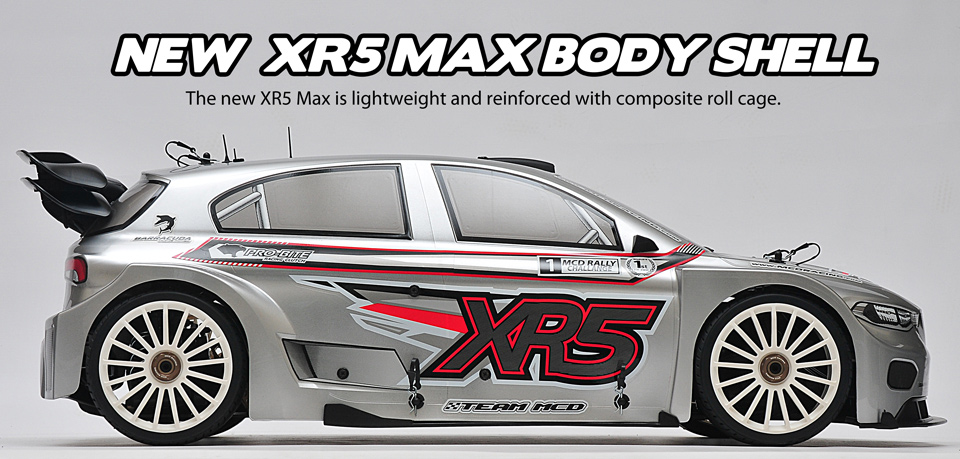

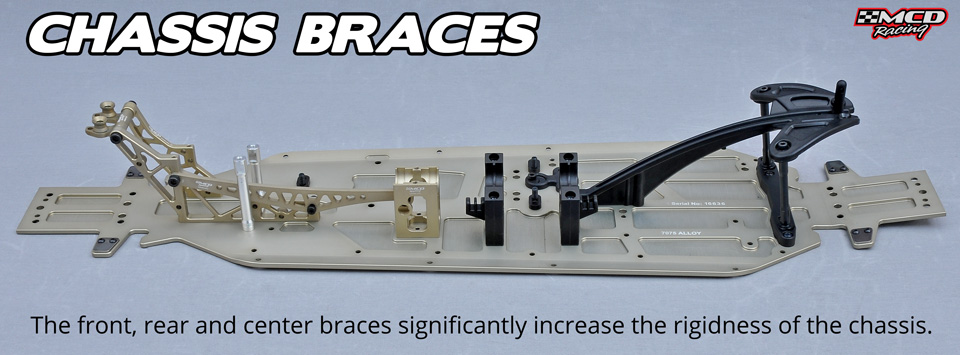

The XR5 MAX is designed to offer a longer wheel-base option to our rallycross enthusiasts. The differences between the existing X5 are the extended wheel base, widened track width, new body-shell, reinforced rear alloy stiffeners, alloy lay-shaft carrier, new alloy shock towers & shock bodies and completely new long chassis.
Order codes: 00525001: XR5 Max Rolling Chassis Pro
Recommended Retail Price: 1,599 EUR

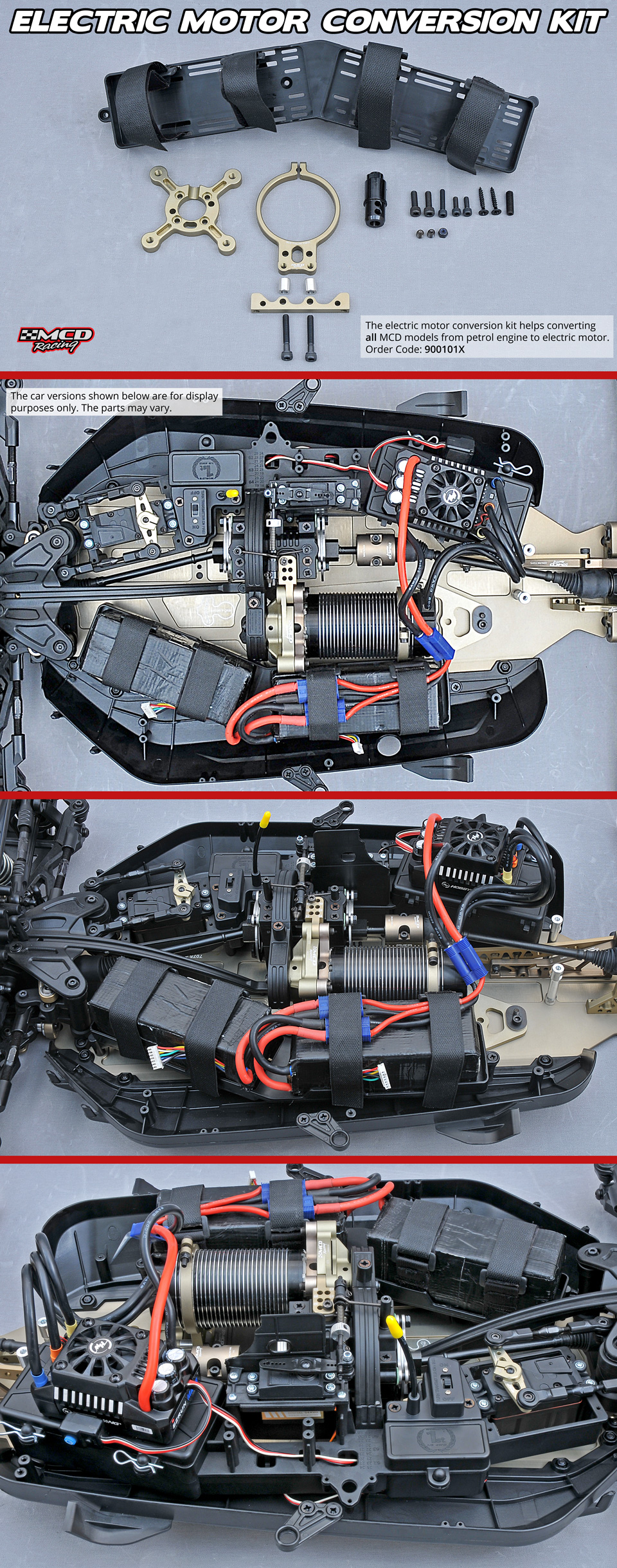

00525201: XR5 Max E-Chassis Pro
Recommended Retail Price: 1,599 EUR
|
 |
 |
- Top of the line competition Rally Cross

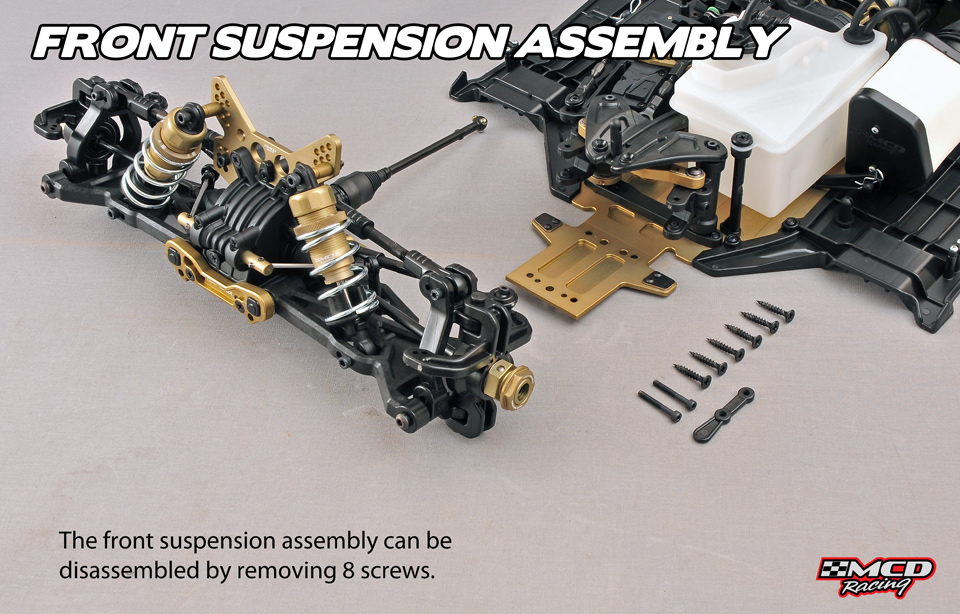

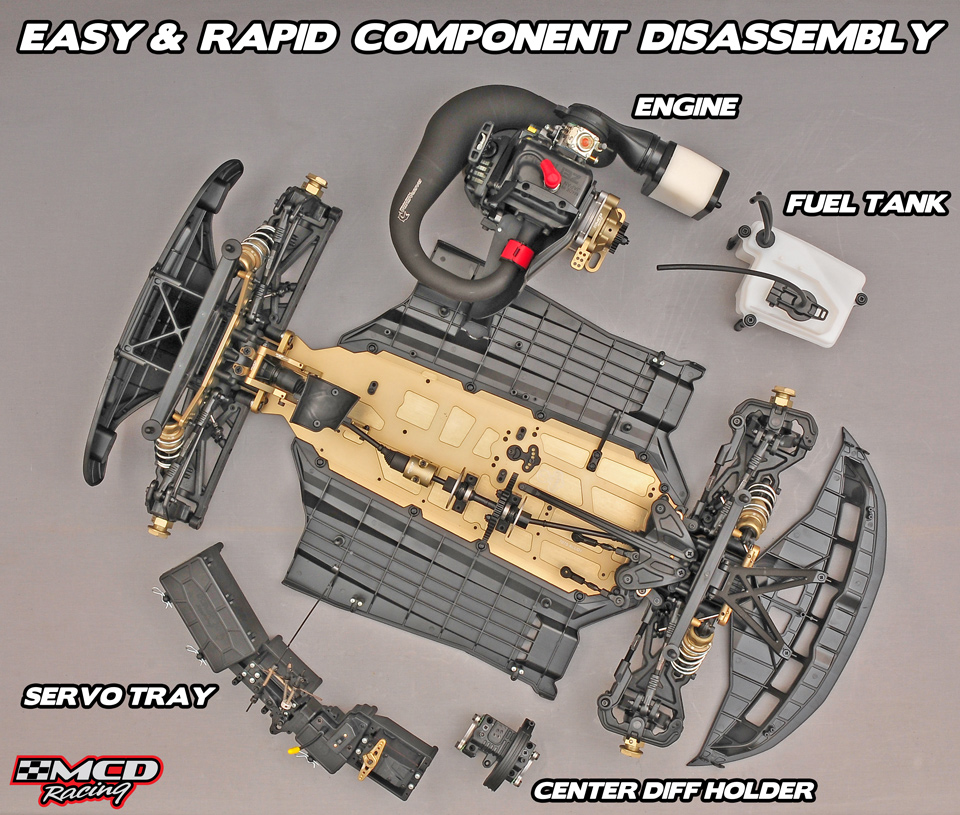

- Easy assembly/dis-assembly
- Easy maintenance
- Centralized and compacted parts layout on chassis
- Elite racing design ultra-durable high performance parts
- Fifth generation MCD chassis & suspension arms

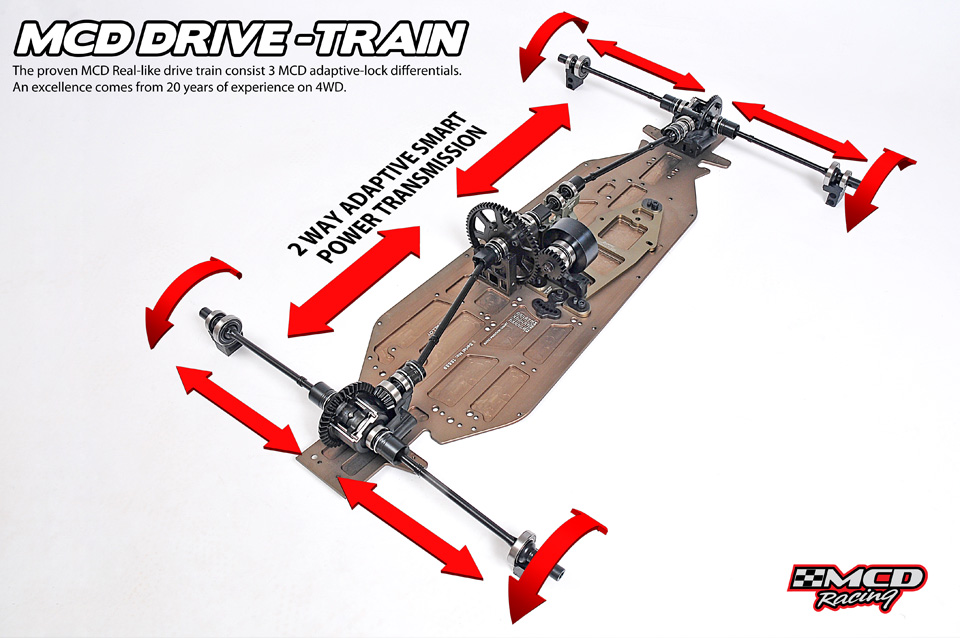

- Sophisticated full-time 4WD Shaft Driven mechanics

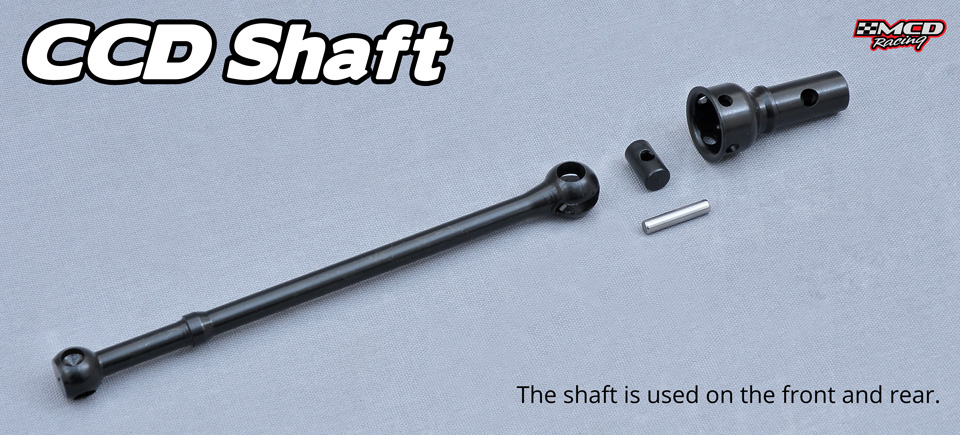

- Ultra strengthened chrome drive shaft and axle
- Easy gear mesh system

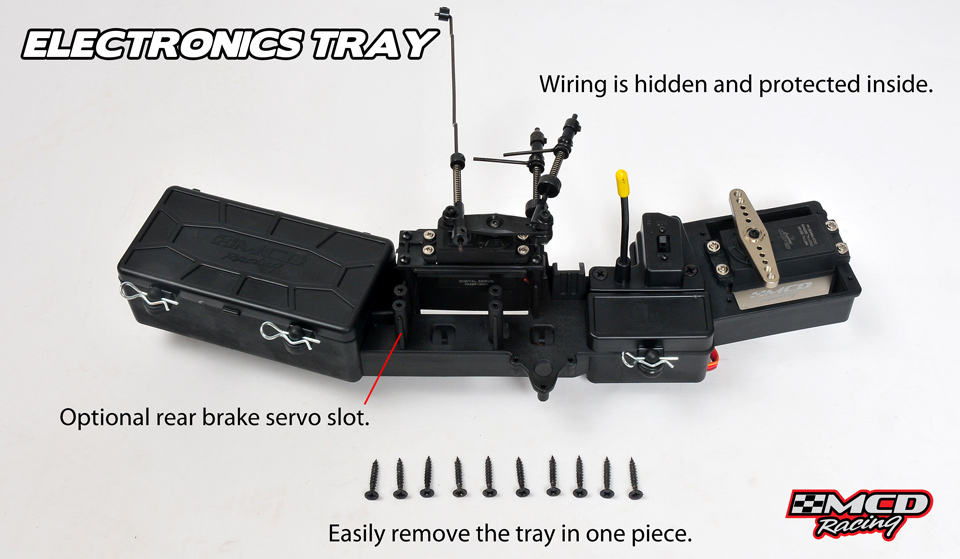

- Easily removable one-piece electronics tray
- CNC machined, anodized light-weight 7075 T6 aircraft alloy chassis

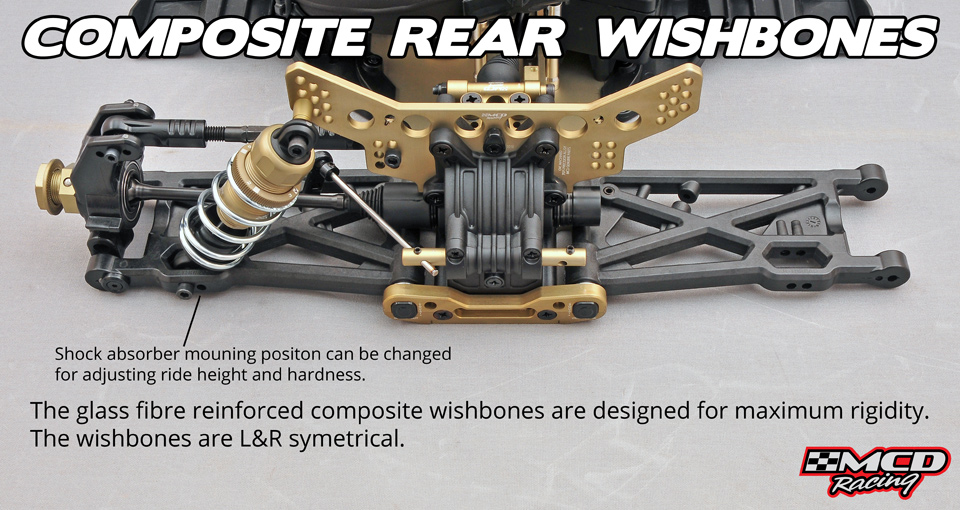

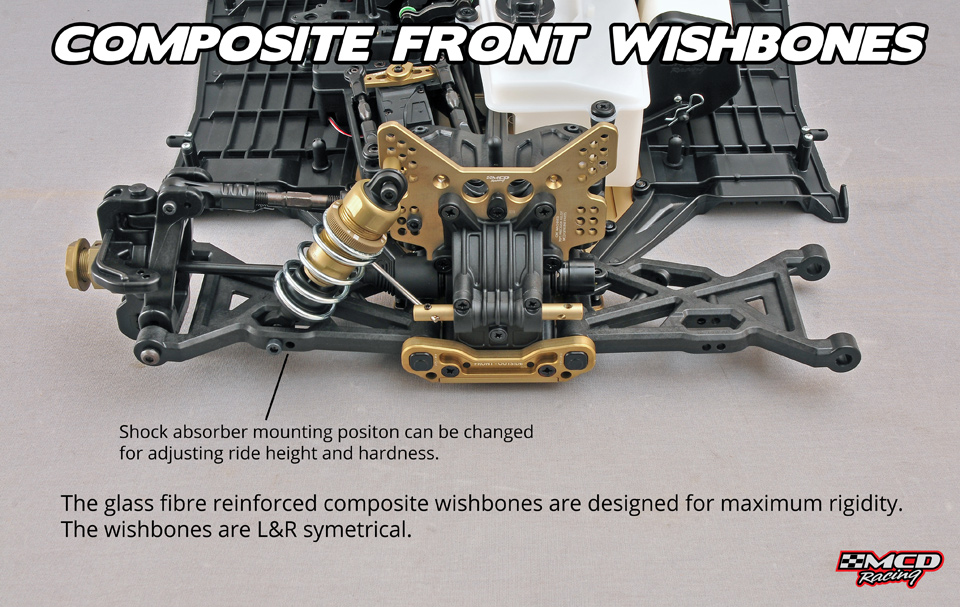

- Strengthened long wishbones

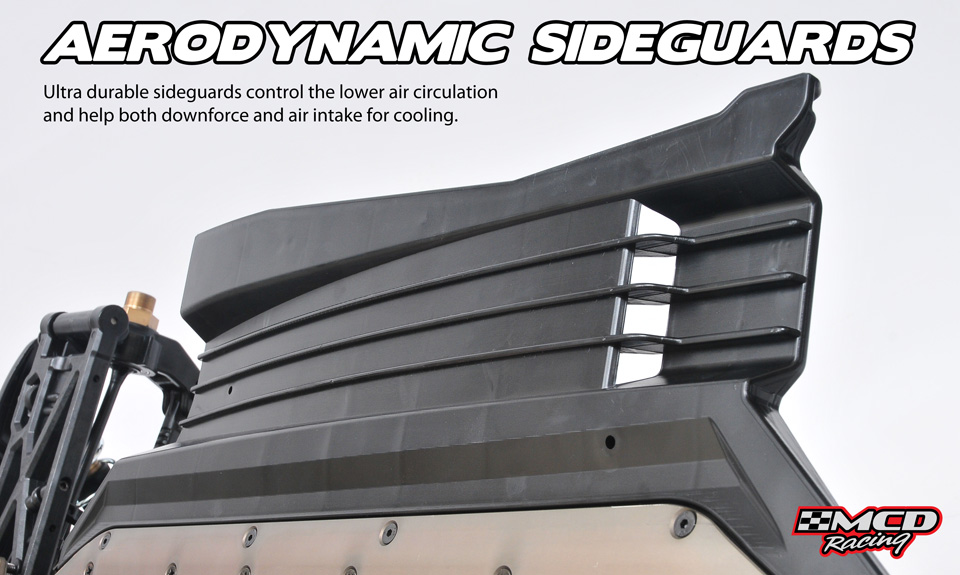

- Solid and durable aerodynamic side guards

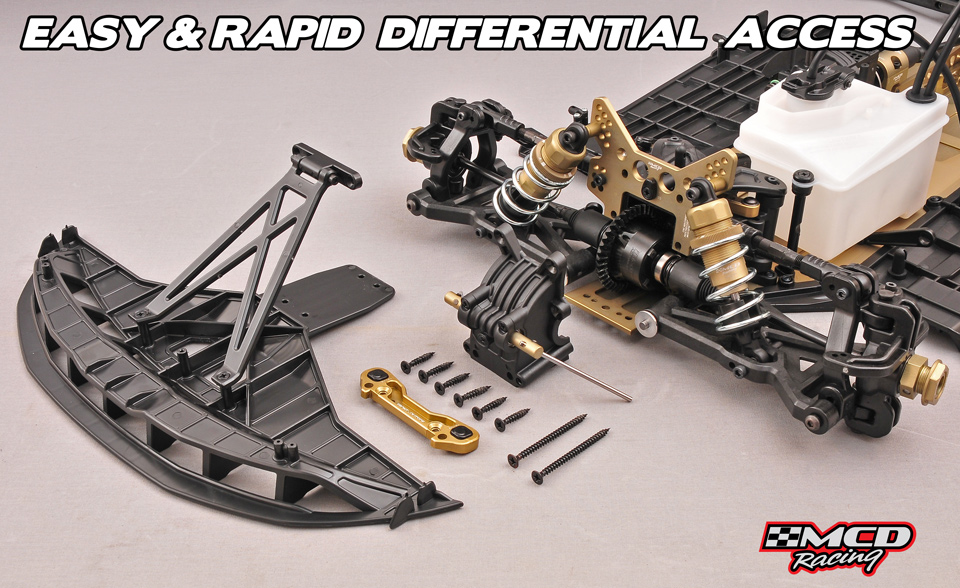

- Easily removable composite front, rear and center diff houses

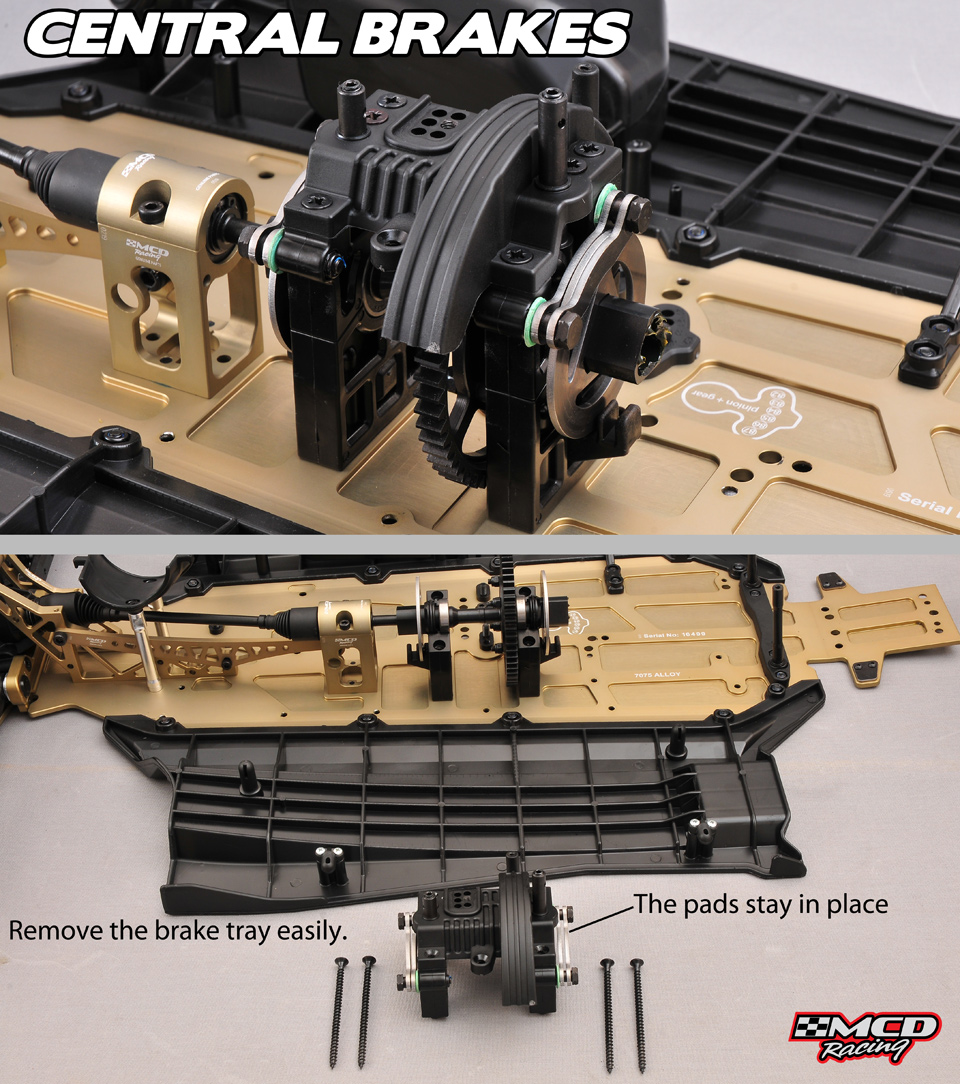

- Ultra durable front and rear adjustable brake system
- Rear-brake only servo slot
- 5mm light-weight 7075 air craft alloy front and rear towers
- Optimized multiple shock mounting holes

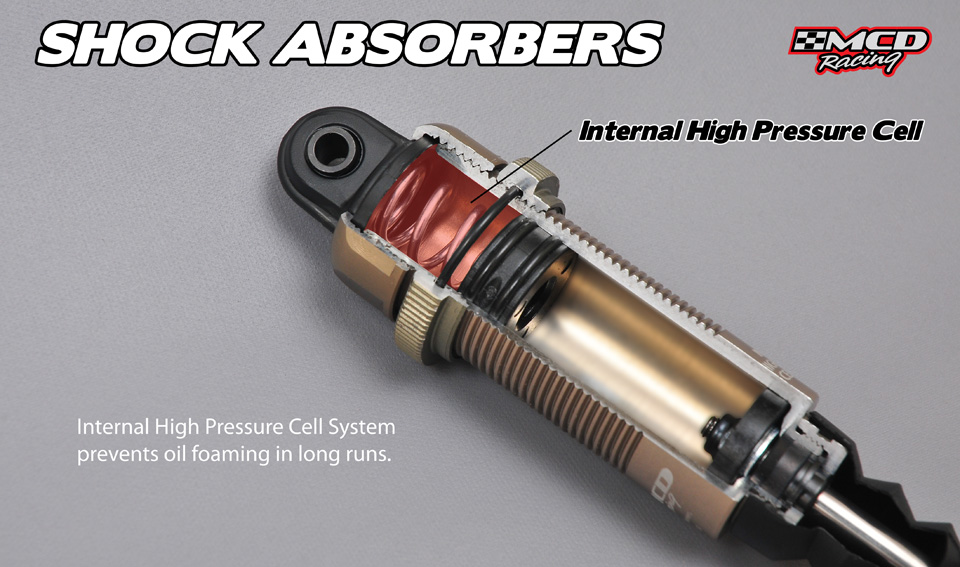

- Coil-over extended alloy shock absorbers with High Pressurized Cell™ System
- Ultra hardened steel transmission gears

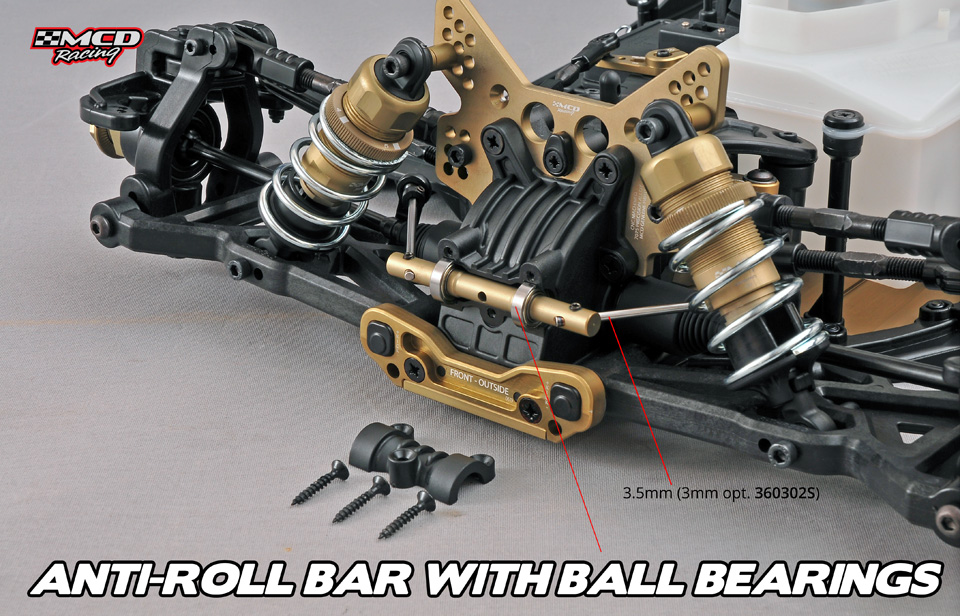

- Double ball bearing anti-roll bars
- No-Stress-Effect polyamide front bumper and rear diffuser
- Ultra durable steel ball cup-joints
- Super-Cooling V5 air ventilation system

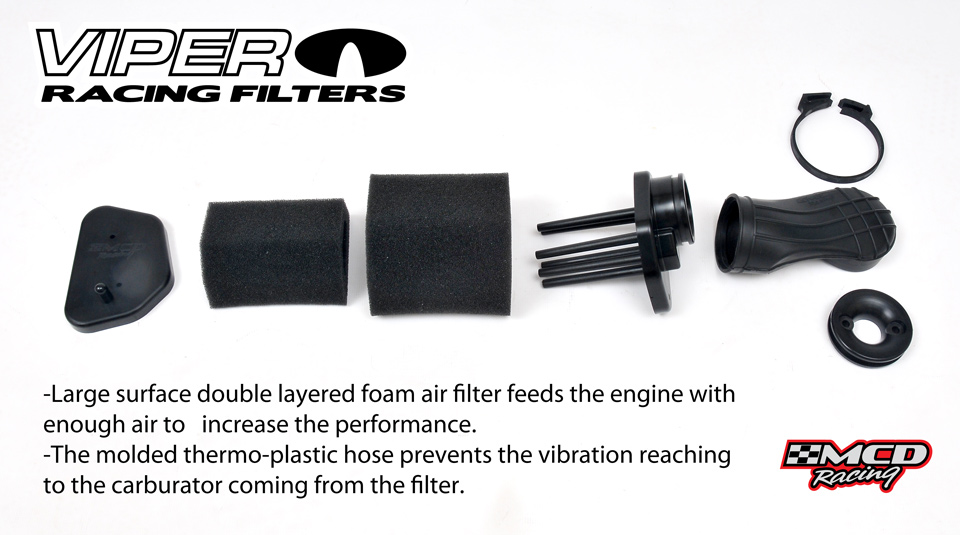

- Viper Racing Air Filters with dual layer foam and thermoplastic hose

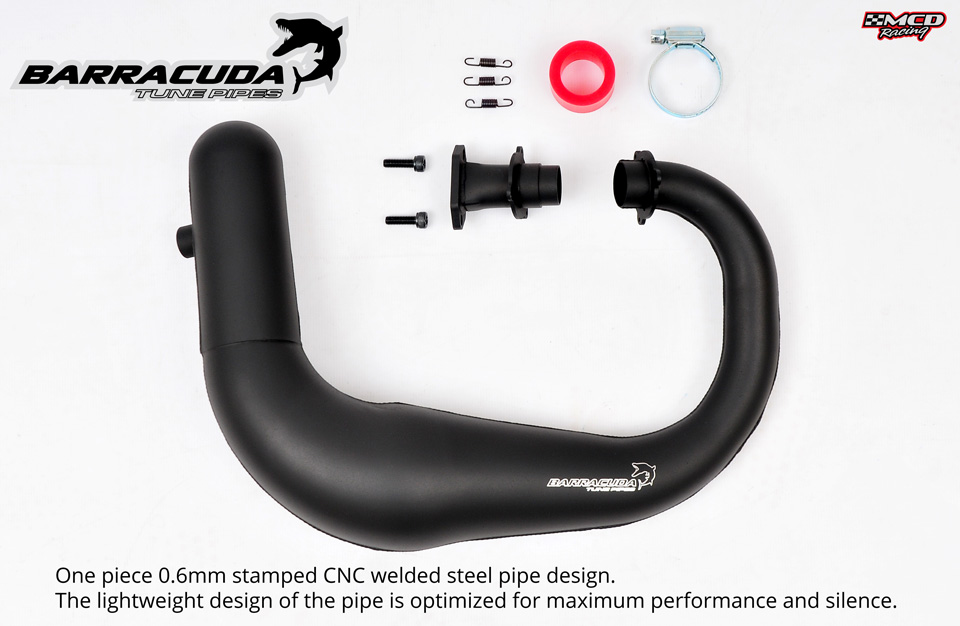

- Barracuda G performance exhaust
- Adjustable CG
- Adjustable weight distribution

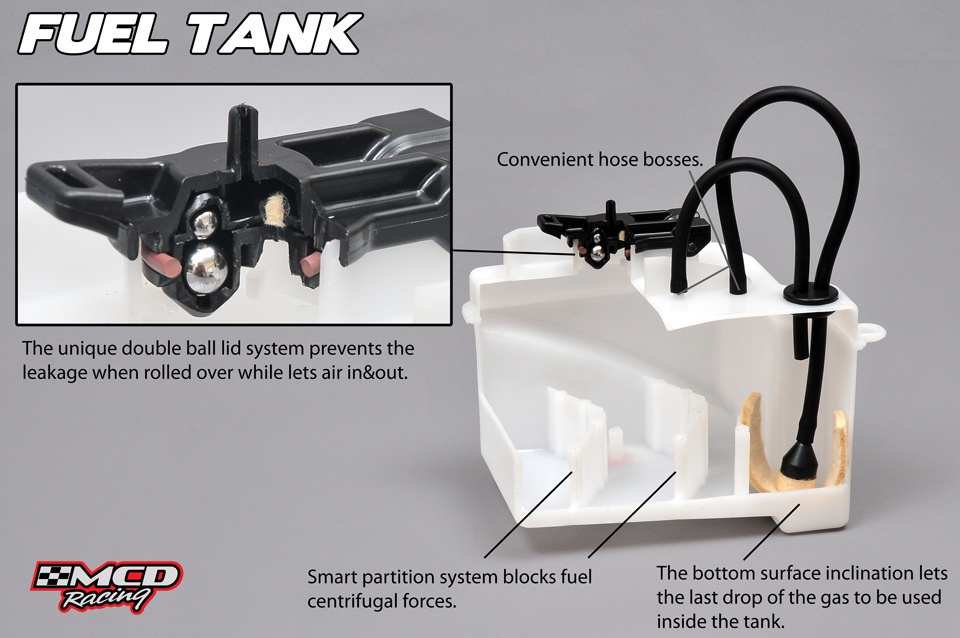

- Molded fuel tank with shake absorbing separators

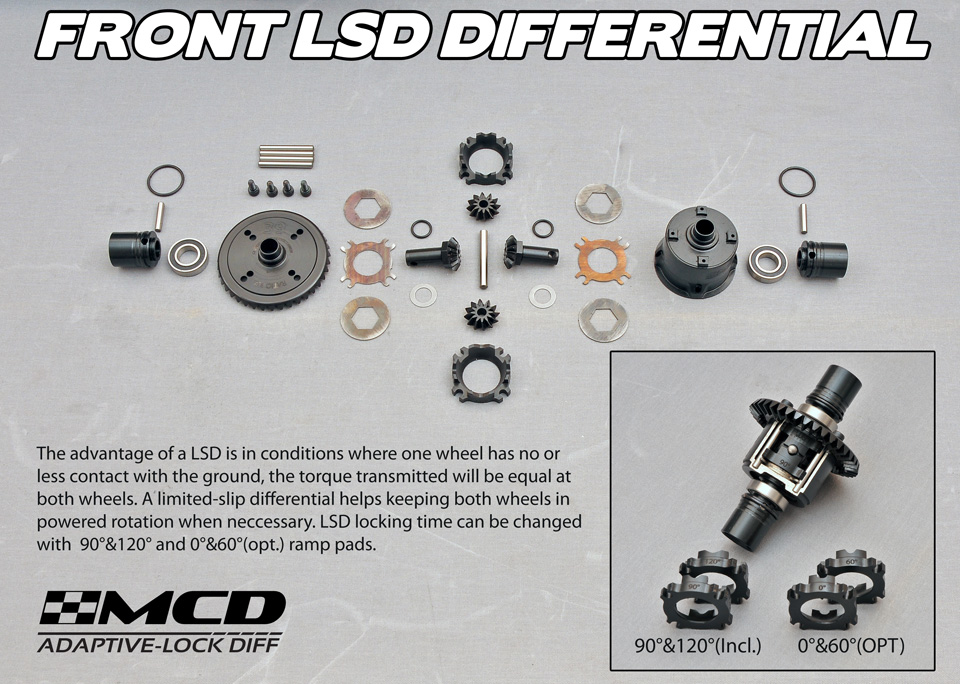

- Front 90° 120° selectable ramp self locking diffs

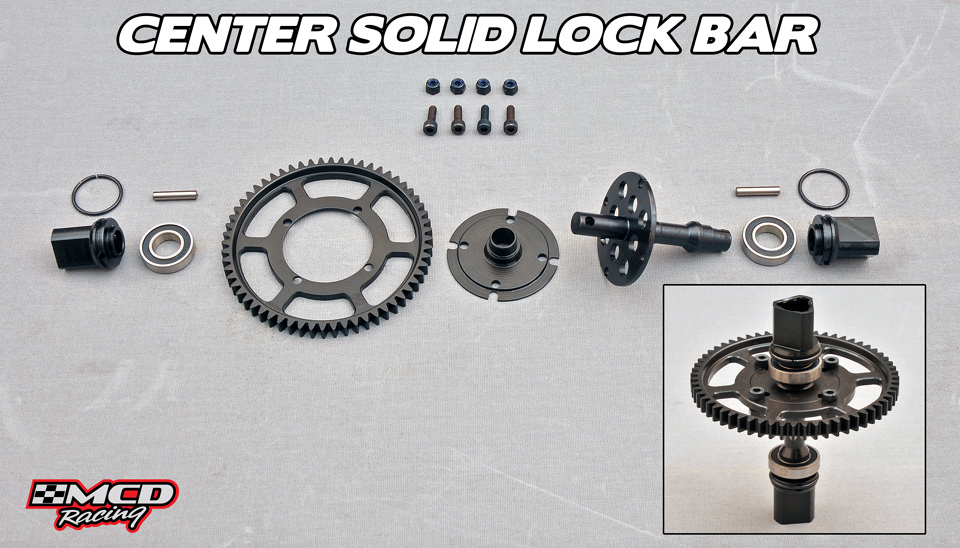

- Center solid lock bar

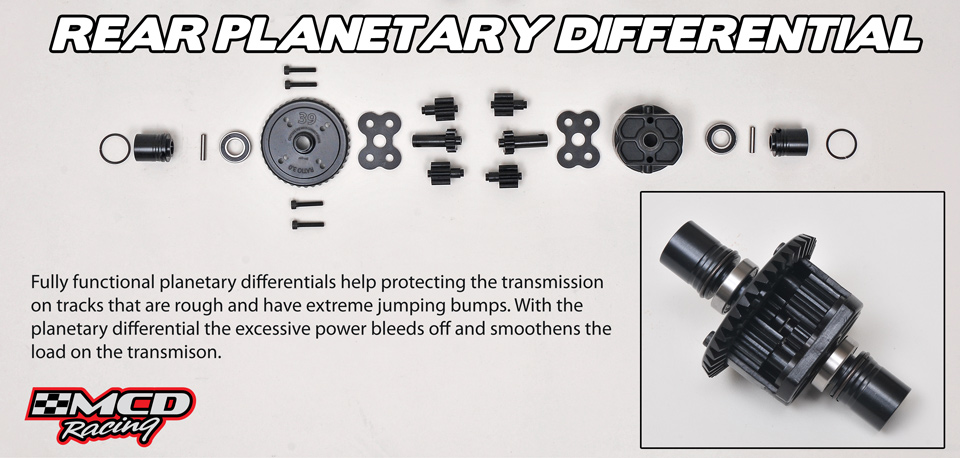

- Rear planetary differential
- Fully composite body accessories

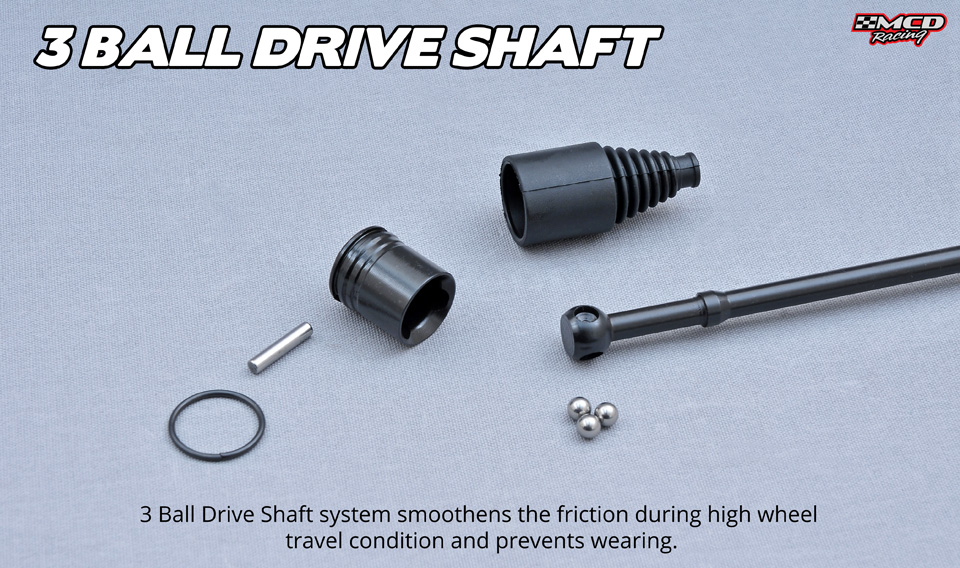

- Drive shaft boot
|
 |
| ON-ROAD COMPARISON CHART |
| Part (Order Code) |
Competition |
Pro |
FT-R |
Ultimate |
|
Short Chassis |
Long Chassis (MAX) |
| Chassis |
5083 Alloy – Short |
7075 Alloy – CNC Machined – Anodized (400103A) |
7075 Alloy – CNC Machined – Anodized (400103A) |
7077 Alloy – CNC Machined – Anodized (400103A) |
| Barracuda G Performance Exaust Set (750601X) |
OPT |
STD |
STD |
STD |
| Clutch Bell Carrier |
Composite |
Alloy (415502A) |
Alloy (415502A) |
Alloy (415502A) |
| Engine Clutch House Alloy (415701A) |
OPT |
OPT |
OPT |
STD |

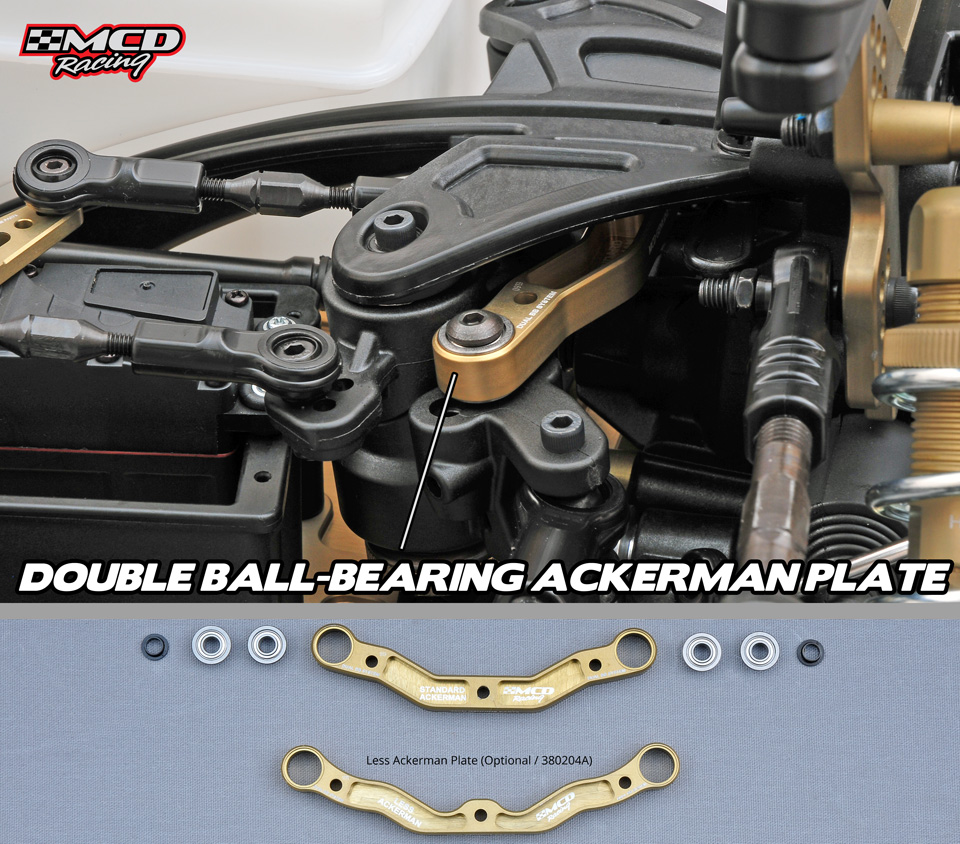

| DBB Ackerman Plate Standard 8mm (380203A) |
OPT |
STD |
STD |
STD |
| Front Diff. |
Planetary F/R |
LSD F/R (200101X) |
LSD F/R (200101X) |
LSD F/R (200103X) |
| Center Diff. |
Solid Lock Bar |
Solid Lock Bar |
LSD Center (200201X) |
LSD Center (200203X) |
| Rear Diff. |
Planetary F/R |
Planetary F/R |
Planetary F/R |
LSD F/R (200103X) |
| Diff. Case |
Composite |
Composite |
Composite |
Alloy (200402A) |
| Front Diff. House Inner |
Composite |
Composite |
Composite |
Alloy (415102A) |
| Rear Diff. House Inner |
Composite |
Composite |
Alloy (415102A) |
Alloy (415102A) |
| Center Diff.Holder Set |
Composite |
Composite |
Alloy (415202A) |
Alloy (415202A) |
| Front Wishbone Alloy (300104A) |
OPT |
OPT |
STD |
STD |

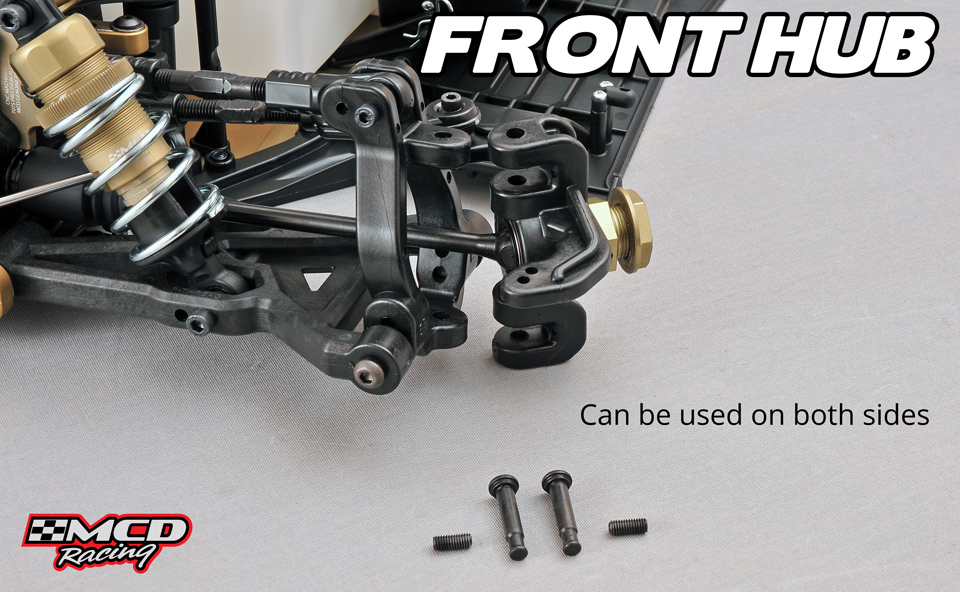

| Front Hub L/R |
Composite |
Composite |
Alloy (300603A) |
Alloy (300603A) |
| Rear Hub L/R |
Composite |
Composite |
Alloy (300604A) |
Alloy (300604A) |

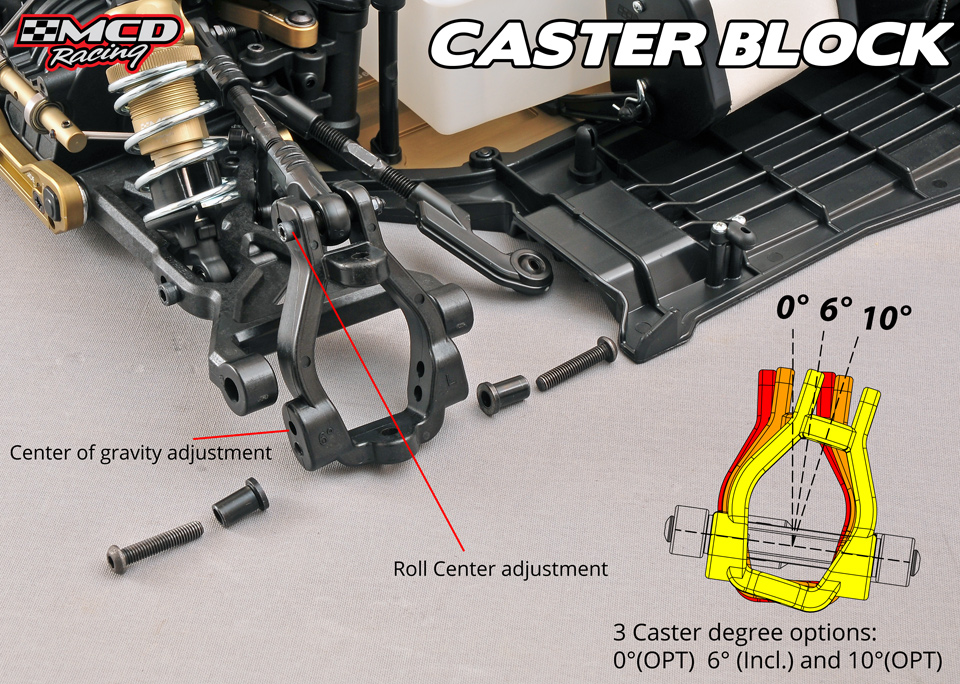

| L/R Caster Block |
Composite(6°) |
Composite(6°) |
0° Alloy (300704A) |
0°, ±4° Alloy (300705X) |
| Pro-Bite Racing Clutch (290101X) |
OPT |
OPT |
OPT |
STD |
| Turnbuckle Set |
Steel |
Steel |
Steel |
Alloy (301204X) |
| Shock Absorbers |
Composite |
Alloy (320103X) |
Alloy (320103X) |
Alloy (320107X) |
| Upper Shock Absorber Joint Cup |
Composite |
Composite |
Composite |
Alloy (320502A) |
| Lower Shock Absorber M5 Joint |
Composite |
Composite |
Composite |
Alloy (320503A) |
| M8 Upper Wishbone Rose Joint L/R Thread |
Composite |
Composite |
Alloy (340102A) |
Alloy (340102A) |
| Servo Saver Upper Arm |
Composite |
Composite |
Composite |
Alloy (380102A) & Composite |
| Steering Servo Turnbuckle |
Steel |
Steel |
Steel |
Alloy (381002A) |
| Brake Plate |
Composite |
Composite |
Alloy (415302A) |
Alloy (415302A) |
| Lay Shaft Carrier |
Composite |
Alloy (415402A) |
Alloy (415402A) |
Alloy (415402A) |
| Rear Upper Stiffener Alloy (446201A) |
OPT* |
OPT* |
STD |
STD |
| Front Stiffener |
Composite |
Composite |
Composite |
Alloy (445102A) |
| Rear Stiffener |
Composite |
Alloy (445202A) |
Alloy (445202A) |
Alloy (445202A) |
| Upper Stiffener Alloy |
OPT** |
OPT** |
Alloy (446101A) |
Alloy (446101A) |
| Diff.House-Stiffener Spacer |
Composite |
Composite |
Alloy (460102A) |
Alloy (460102A) |
| Carburetor / AirFilter Venturi |
Composite |
Composite |
Alloy (725302A) |
Alloy (725302A) |
| Engine Insulator Alloy G230-G290 (726002A) |
OPT |
OPT |
OPT |
STD |
| Radio/Servo Tray – Hydraulic Brake Compatible (930301X) |
OPT |
OPT |
OPT |
STD |
| Brake Disc |
Spring Steel |
Spring Steel |
Light Weight ABS (260102S) |
Light Weight ABS (260102S) |
| Front Wishbone Holder Set |
Composite |
Alloy (300203A) |
Alloy (300203A) |
Alloy (300203A) |
| Rear Wishbone Holder Set |
Composite |
Alloy (300303A) |
Alloy (300303A) |
Alloy (300303A) |
| Anti-Roll Bar Set F/R 3.5mm (360101X) |
OPT |
STD |
STD |
STD |
| Front Tower |
Alloy 5mm |
Alloy 5mm (430303A) |
Alloy 5mm (430303A) |
Alloy 5mm (430303A) |
| Rear Tower |
Alloy 5mm |
Alloy 5mm (430403A) |
Alloy 5mm (430403A) |
Alloy 5mm (430403A) |
| *Required for assembly: 446201A, 415402A and 415302A |
| **Required for assembly: 446101A and 446301A |
|
 |
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
 |
| Length |
: 1010 mm |
| Width |
: 480 mm |
| Overall height |
: 375 mm |
| Ground clearance |
: 25-42 mm |
| Weight |
: 14.2kg |

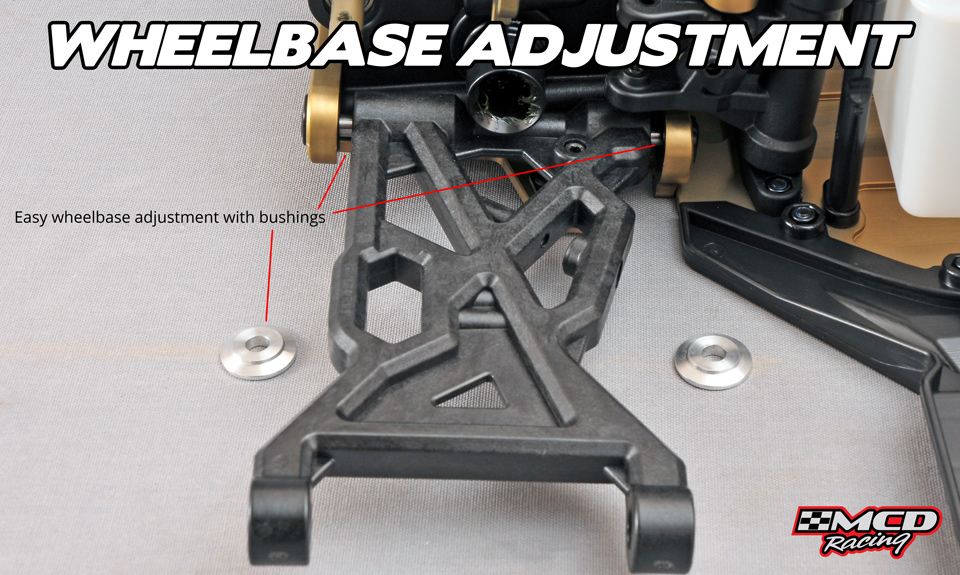

| Wheelbase |
: 610-620 mm (adjustable) |
| Trackwidth |
: 410mm |
| Chassis material |
: 7075 Anodized T6 Alloy (4mm) |
| Suspension |
: Non-parallel non-line independent |
| Caster angle |
: 8°(6° – 10°(total caster) adjustable) |
| Camber angle |
: Adjustable |

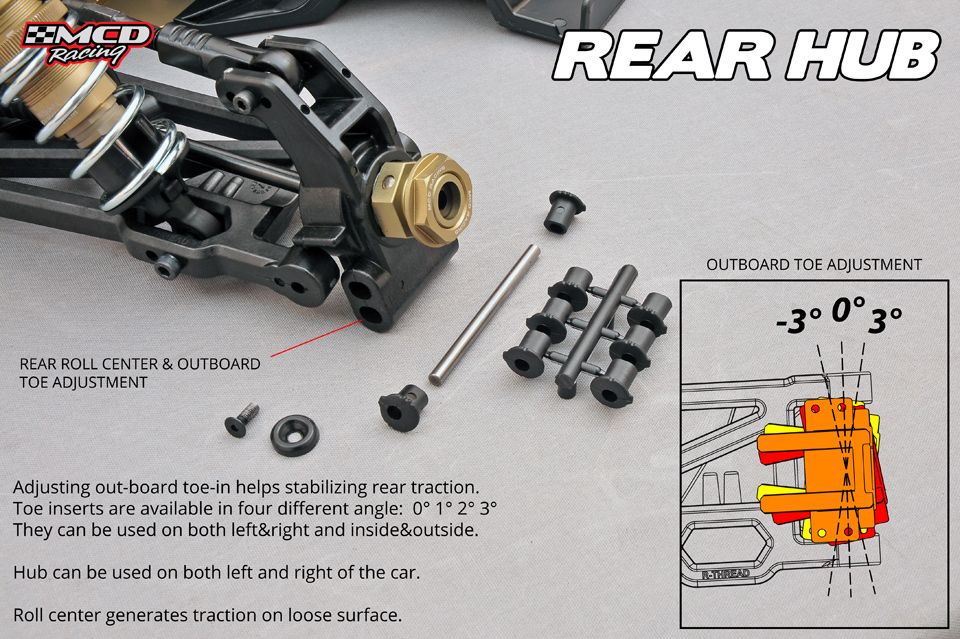

| Toe angle |
: In-board and out-board adjustable |
| Anti-squat |
: 3°(adjustable) |

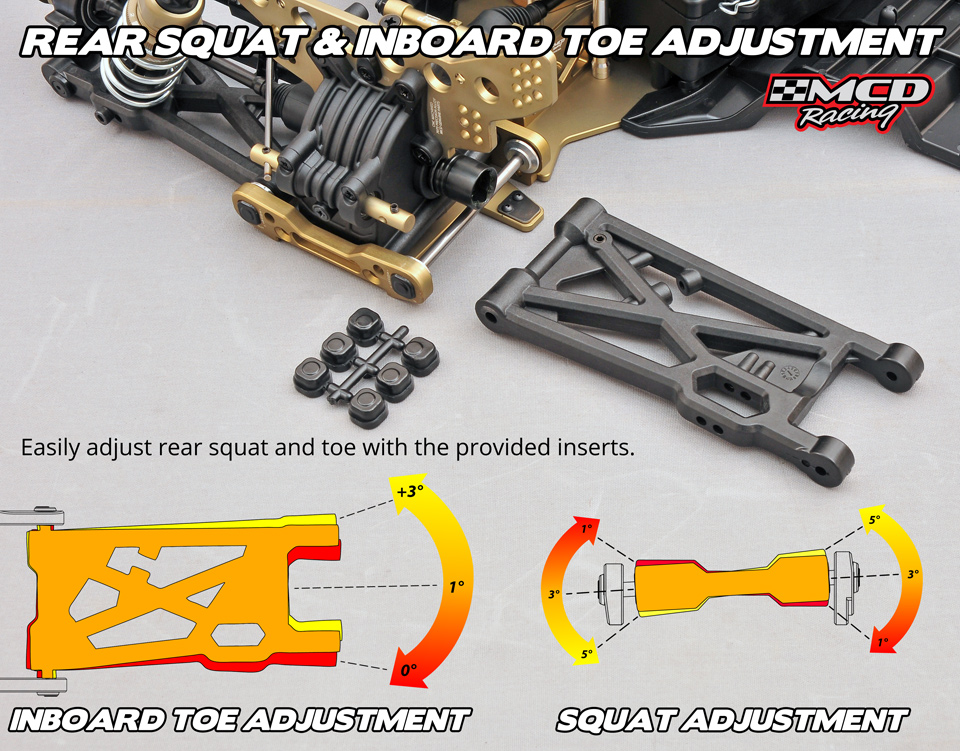

| Rear-squat |
: 5° |

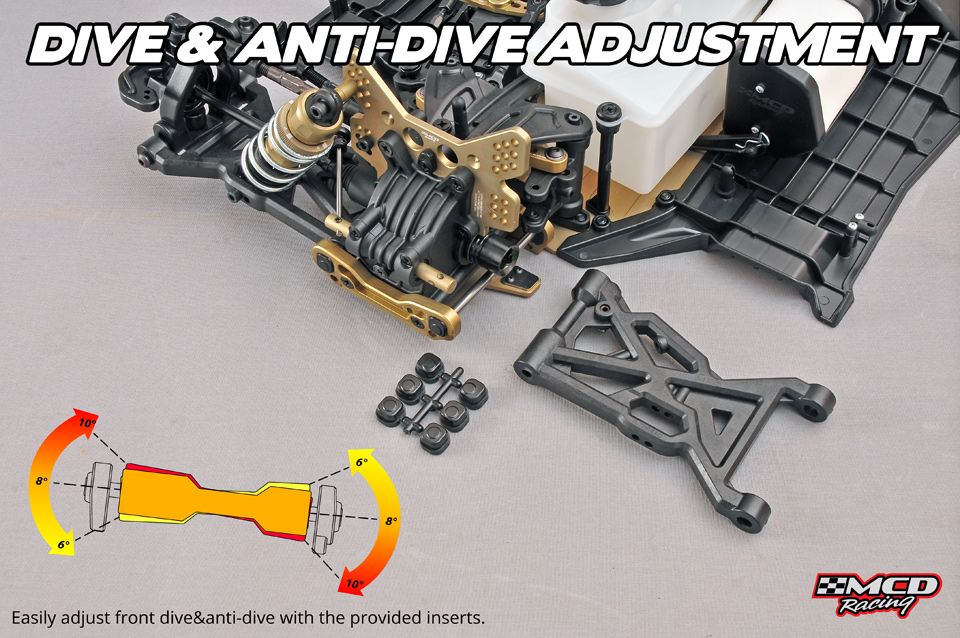

| Dive, Anti-dive |
: 6°-10°(adjustable) |
| Shock absorber |
: Coil-over Oil-filled Internal High Pressure Cell |
| Transmission |
: Full-Time 4WD 3-Diff Shaft Driven |
| Gear ratio |
: 7,2:1 (18 available 7,2:1 to 10,67:1) |

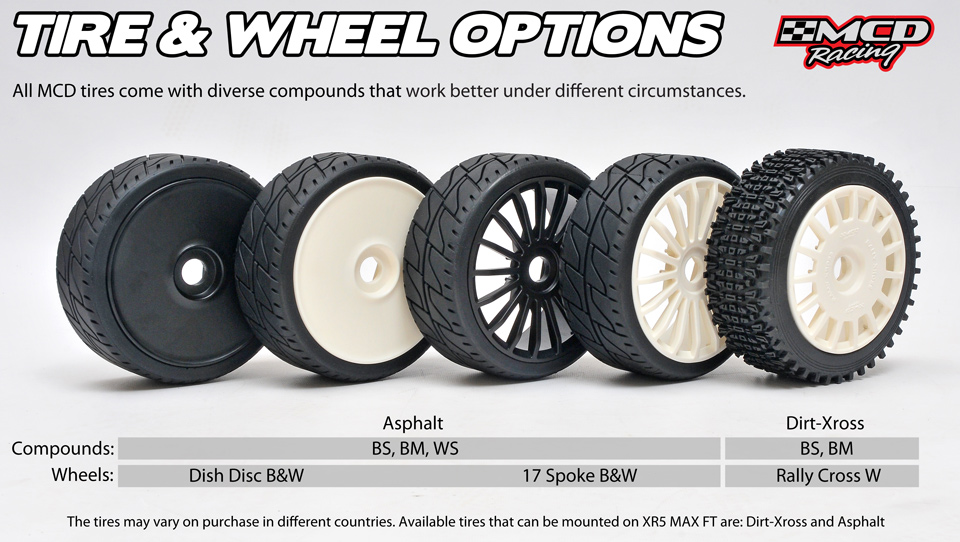

| Tyre size |
: 65 x 160 mm |
| Order codes: 00525001: XR5 Max Rolling Chassis Pro |
|
