Inclui:
Carregador e430 AC LiPo LiFe 2-4s 1-3A 30W Charger SkyRC
Cabo de Carga XT60
Cabo de Alimentação AC
Manual de instruções
Características:
Carrega Baterias LiPO: 2-4S
Permite balancear as baterias
Corrente de carga: 3A Max
Informação adicional da marca:

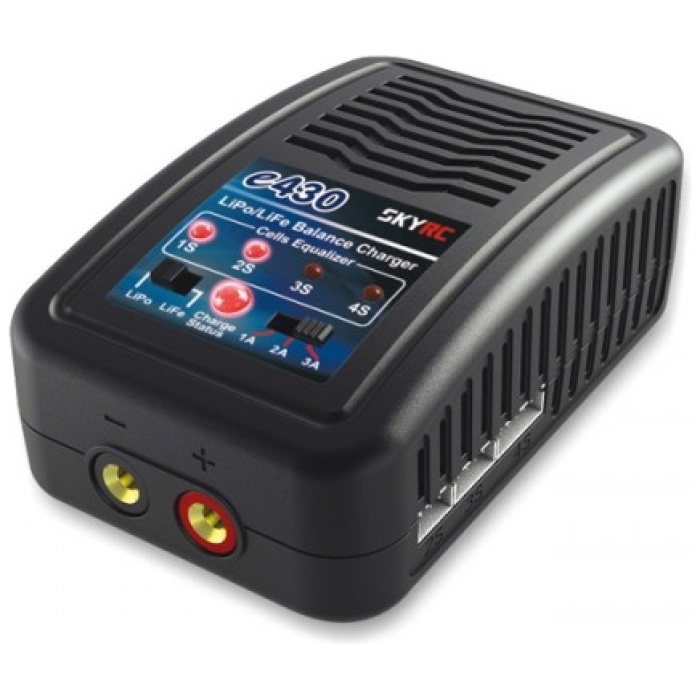

SkyRC e430 Charger is an economic, high-quality 100-240V AC balance charger, designed for charging LiPo and LiFe batteries from 2-4 cells in balance mode. The circuit power is 30W and max charge current can reach to 3A. There are three kinds of charge current 1A/2A/3A that can be selected. You could select the proper charge current according to battery capacity.
100-240V
Allowable AC Input 100-240V
30W
Maximum Charge
Circuit Power
Handy
Inexpensive, Portable and Easy to Operate
Balance Mode
Balance Automatically with Balancer Built-in
Safe
Short Circuit / Reverse Polarity Protection
1A/2A/3A
Adjustable Current of 1A/2A/3A

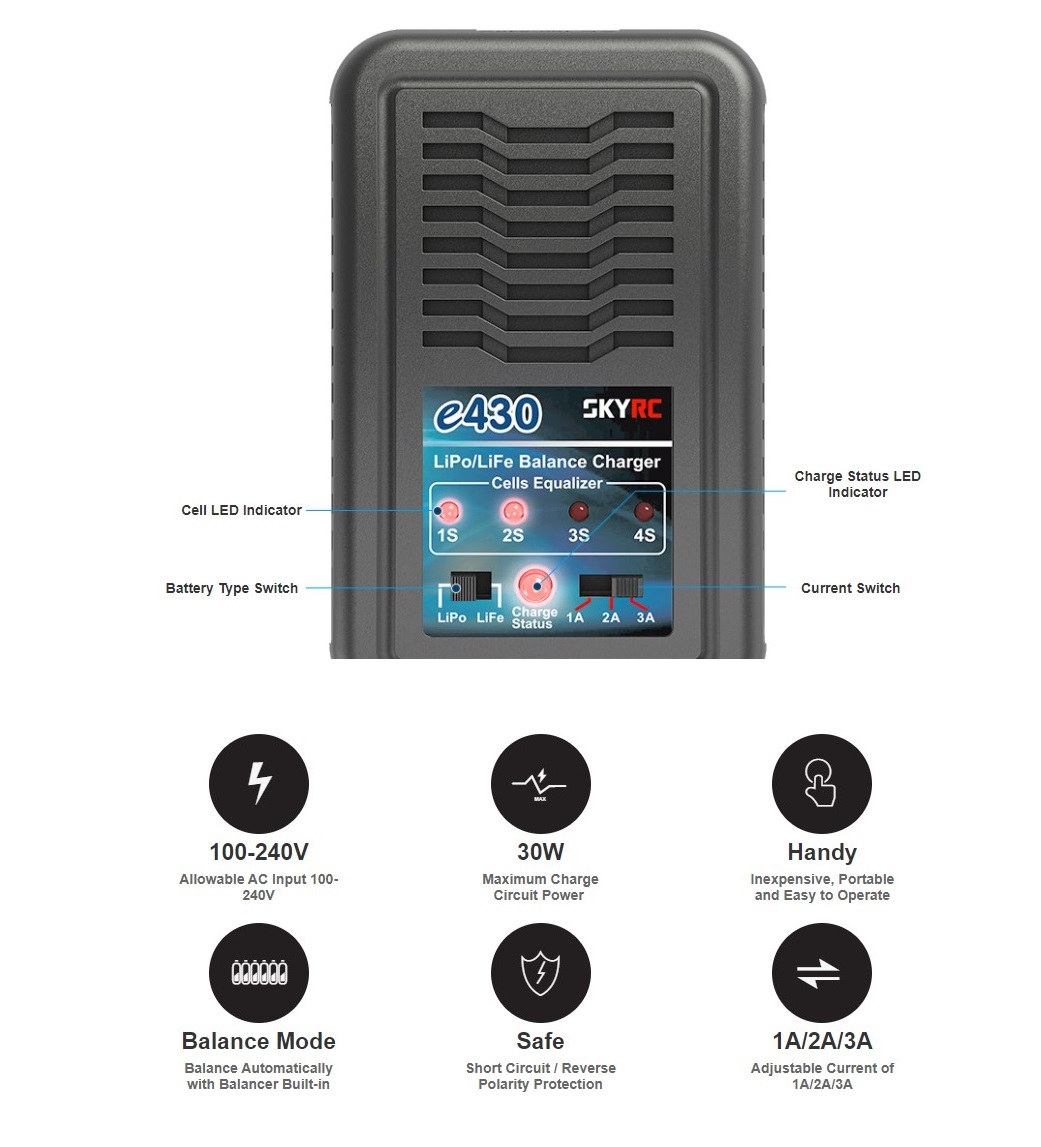

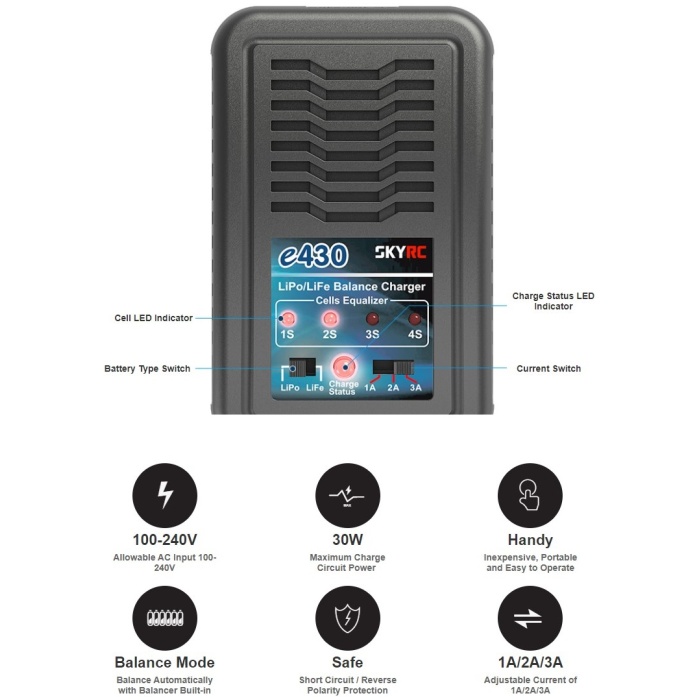

Cell LED Indicator
Battery Type Switch
Current Switch
Charge Status LED Indicator

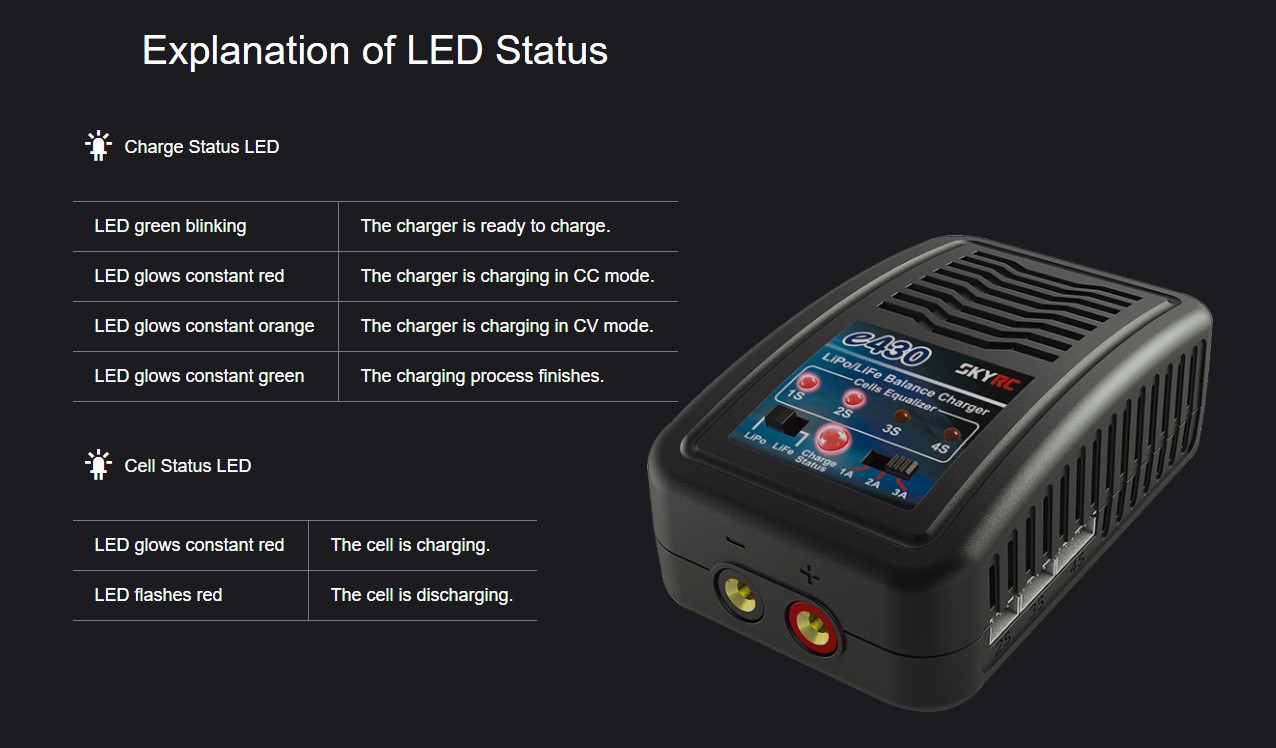

Explanation of LED Status
Charge Status LED
LED green blinking |
The charger is ready to charge. |
LED glows constant red |
The charger is charging in CC mode. |
LED glows constant orange |
The charger is charging in CV mode. |
LED glows constant green |
The charging process finishes. |
Cell Status LED
LED glows constant red |
The cell is charging. |
LED flashes red |
The cell is discharging. |
What’s in the Box
e430 Charger
AC Power Cord
XT60 Charging Cable
Instruction Manual
Specifications
Charge Current
1A/2A/3A ± 10%
Current Drain for Balancing
200mA
Size
Length : 110.7mm
Width : 69.4mm
Height : 40.5mm
Nota: Este artigo é contra-indicado para crianças com menos de 3 anos
